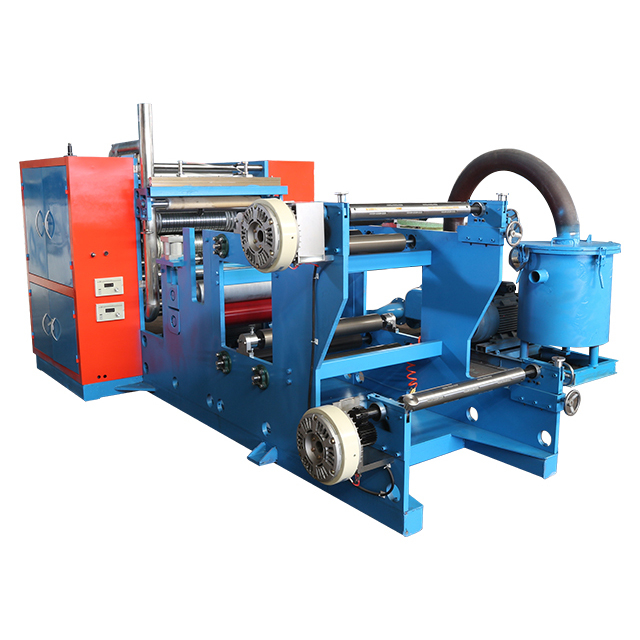

FDF-680
FITLIFE
1、The production process: The materialonthe machine--constanttension adjustment→embossing device→ sltting-vacuum adsorption folding (interdocking)→ molding products launched
2、Finished product size:length 273 mm × width 9 inches or 12 inches
3、Finished product folding size:length 135mm × width 9inches or 12inches
4、Finished folded shape:V fold crossed, continuous extraction
5、Embossing device:steel on the polyurethane roller
6、Applicable raw materials:0.01-0.02MM above the tolerance plus or minus 5% thickness single layer aluminum foil
7、Raw material core size: 76mm (3inches)
8、Material size:≤p600mm × maximum width of 680mm
9、Processing capacity: 250 sheets/column points,that is, 500 sheets/minute
10、Slice size:9inches 2columns or 12 inches 2columns or 9,12inch each 1 column(please confim)
11、Power required: Roots blower motor:380V 50Hz 20KW
12、Main motor:380V 50Hz 4KW
13、Constant tension motor:380V 50Hz 1KW
14、Machine weight:4000kg
15、Machine size:4.5m*2㎡*2m
16、Air compress:0.6MPA
17、Root Blower Station (LxWxH): 1500m㎡*1000mm*2500mm
18、We also have 980mm size, one time can make three clumns (FDF-980M)
