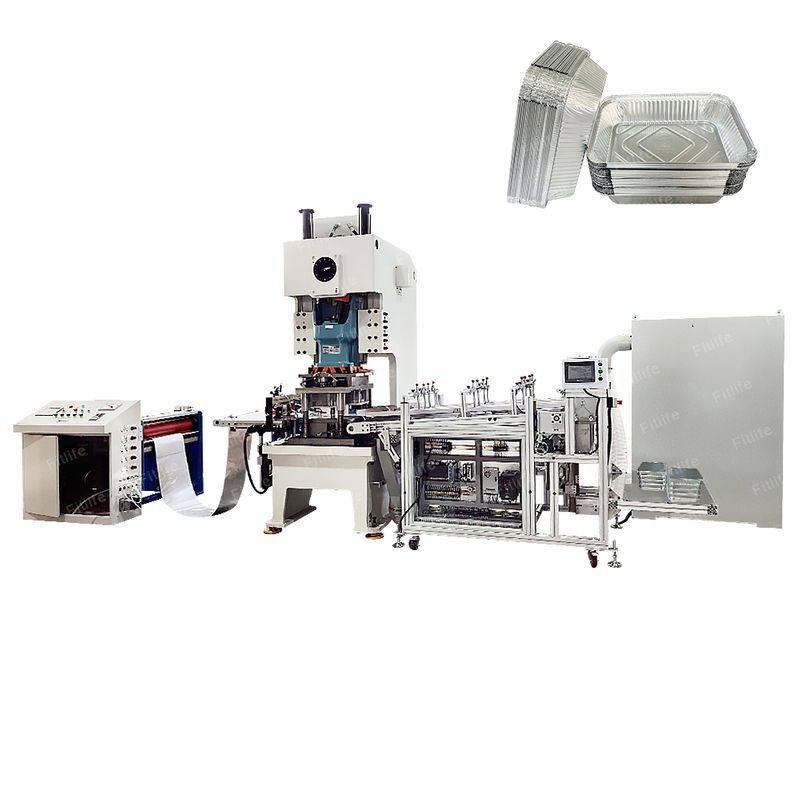

Automatic Aluminum Foil Container Tray Making Machine Line

Fitlife foil container making machine line adopts the electrical stepping system (can be replaced by PLC controller as customer's requirement) to realize the function of positive and negative rotary of motor. With the adoption of double electromagnetism valves and pressure relay, the operational safety is guaranteed. The frames of equipments are made of the holistic steel which has the advantages of high rigidity and reasonable structure. Thanks to inside installation of the driving system, the layout of the equipment is compact. It adopts the independent removable control panel is colorful, convenient and has nice layout. Also, the production line adopts the independent removable control panel which is colorful, convenient and has nice layout.
Availability:
Quantity:
  • AF-80AT

  • FITLIFE

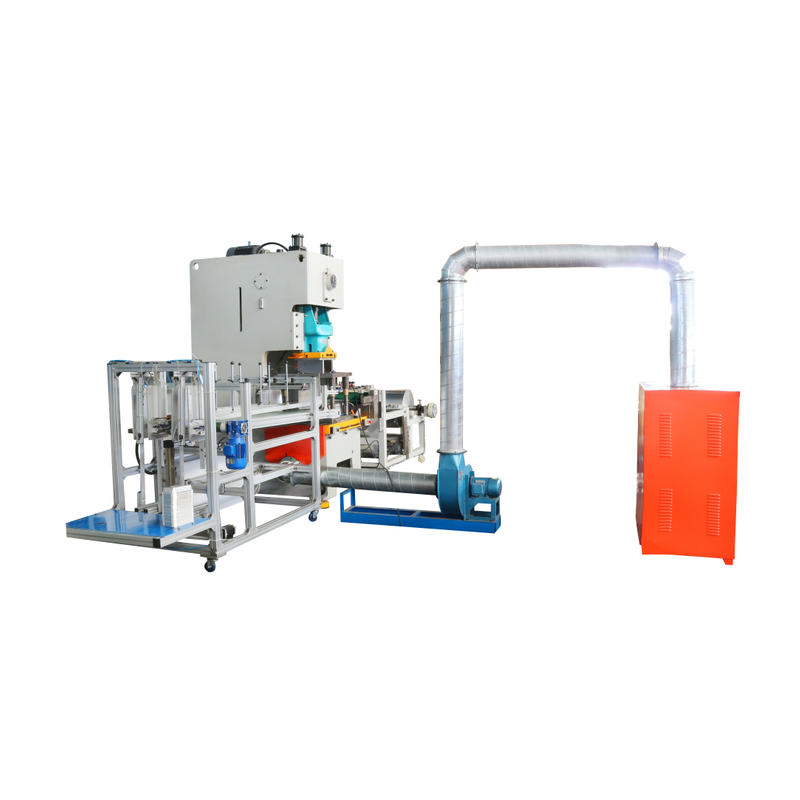

80AT Aluminum Foil Container Making Machine

AF-80AT is the five cavities capacity model production line for aluminum foil container. Complete automatic level upgrade your factory capacity, lead your company be higher level competition and situation. AF have 45ton,63Ton,80ton,110Ton, Common feeder,Embossing feeder ,Common collector and Auto Stacker, Automatic scrap system for your option.




PRODUCT SPECIFICATIONS


Max.Pressure

800kn

Max.Material Width

750mm (OEM)

Max.Material Diameter

800mm

Speed

40-80pcs/min (1 cavity); 80-160pcs/min (2 cavities)

Slide Stroke

240mm

Mould Loading Height

550mm

Mould Adjustable Height

80mm

Press Power

11kw

Press weight

8000kg

Press Dimension

2300mm*1600mm*3300mm

Feeding Machine Size

2200mm*1700 mm*1500 mm

Feeding accuracy

土0.1mm

Feeding Machine Power

1.5kw

Double Track Collector Size

2500mm*1300mn *1600mm

Double Track Collector Power

3kw

Lunch box size (Collector)

100*100mm -250*350mm

Dimension(L*W*H)

5020mm*1600mm*3300mm

Voltage

220V/60H ;380V/50Hz

Gas pressure

0.6Mpa



Product Details

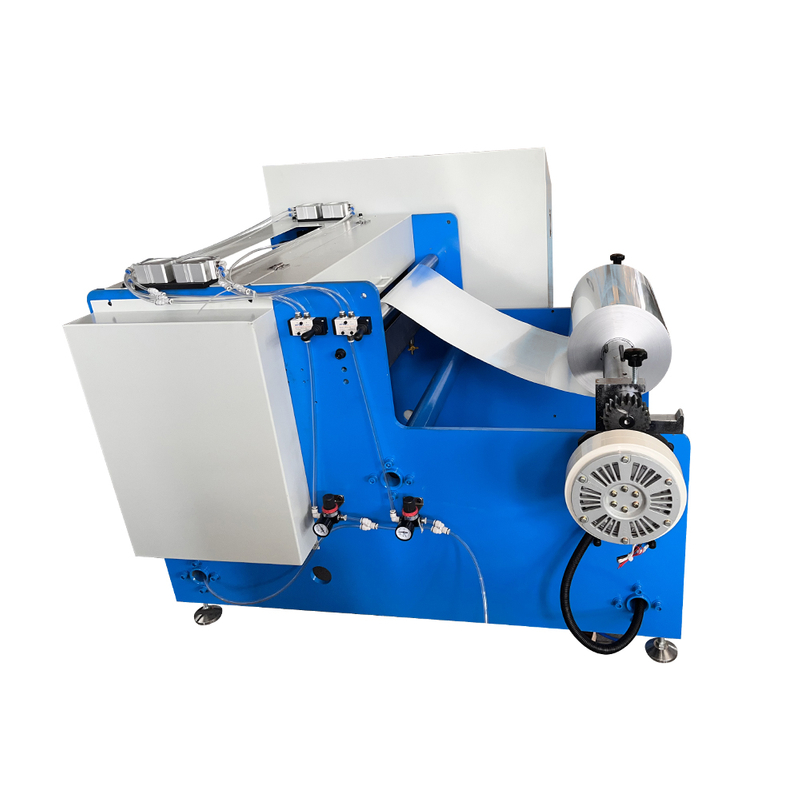

送料机1 拷贝Feeding Machine

1-Our feeding machine is the automatic feeding device which is the ancillary equipment for punching equipment.

2- One machine can realize automatic oiling, automatic feeding, the length of an arbitrary set, it provide accurate positioning and widely adjusting range.The device has the characteristics of feeding accuracy, coating the oil evenly, material waste is small, high efficiency, clean appearance, small size and easy installation, simple operation and low noise.

微信图片_20240120110715

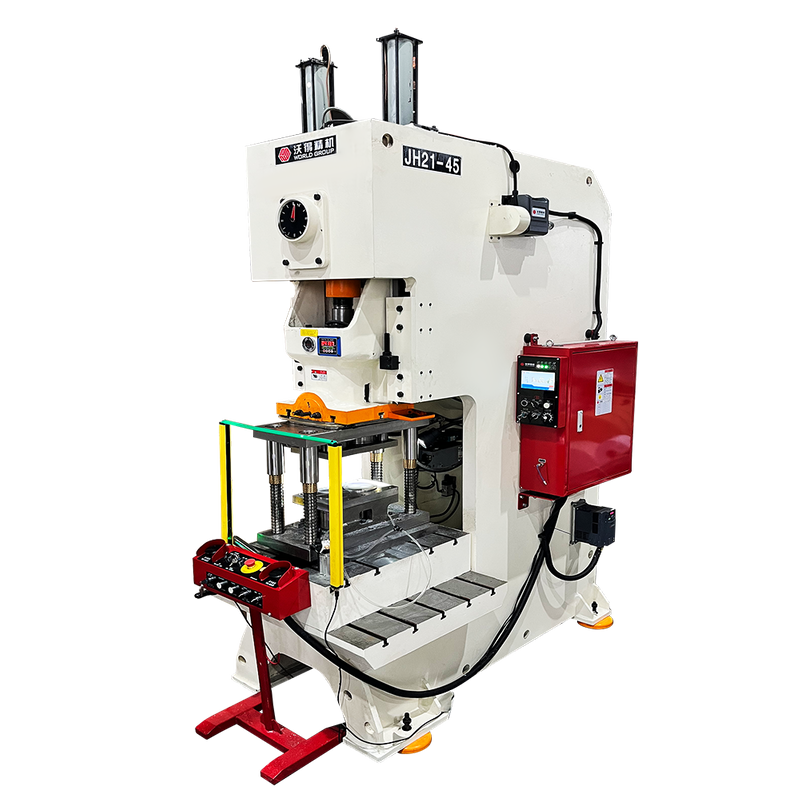

Punching Machine

1-High performance presses are widely used in the fields of aeronautics,auto,agriculture machines,electric machines,apparatuses and meters,medical equipment,electrical home appliance and hardware.

2-Square figure long guide with six friction faces makesabrasion resistant and punching precision, drives stably with low noise and long service life.

3-PLC electric control system is

safe and reliable.



4

Automatic stacker

It is a assist system to collect containers.

1-Frequency control speed adjustment of conveyor.

2-Auto-counting function.

3-Container platform anticollision function
4-Can connect production line linkage or single use.
5-Adopt touch screen and PLC
computer control. 6-Lifting table adopt stepper and ball screw table.


MJ03

Mold

It is a assist system to collect containers.

1-Frequency control speed adjustment of conveyor.
2-Auto-counting function.
3-Container platform anticollision function
4-Can connect production line linkage or single use.
5-Adopt touch screen and PLC computer control. 6-Lifting table adopt stepper and ball screw table.





Finished Product Show


11

Aluminum Foil Pizza Pan

微信图片_20230728170233_452_452

Coffee Capsules

3

Gold Aluminium Foil Tray

2

Oven Use Aluminum Foil Plate



微信图片_20231104163023
