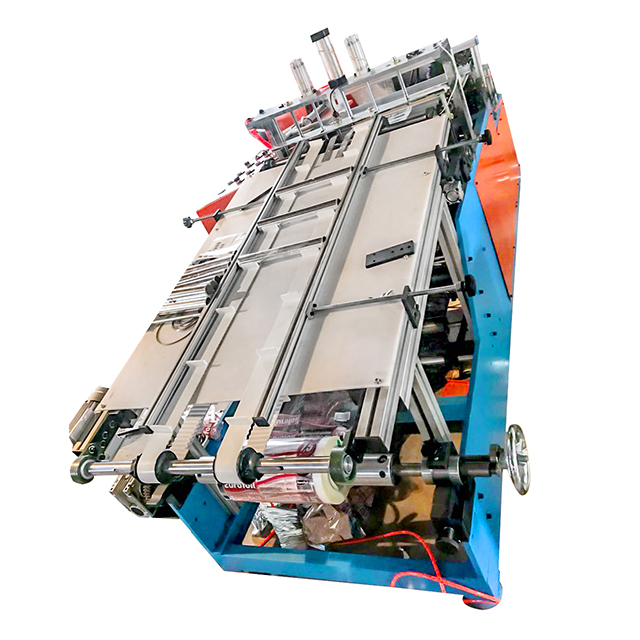

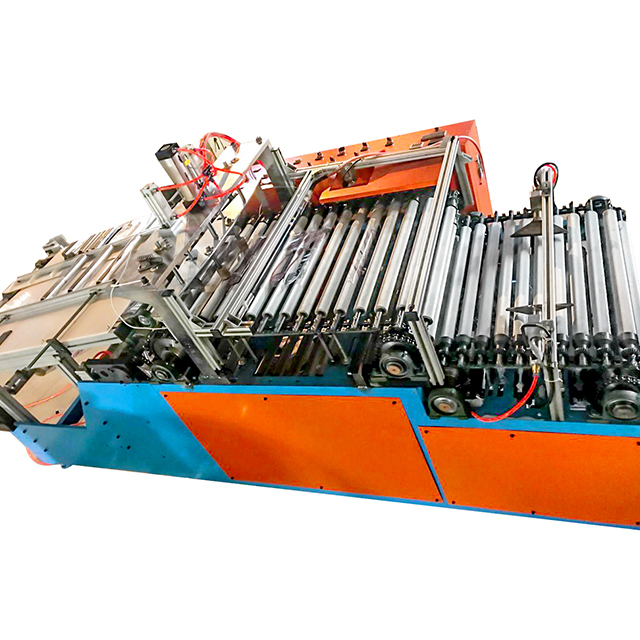

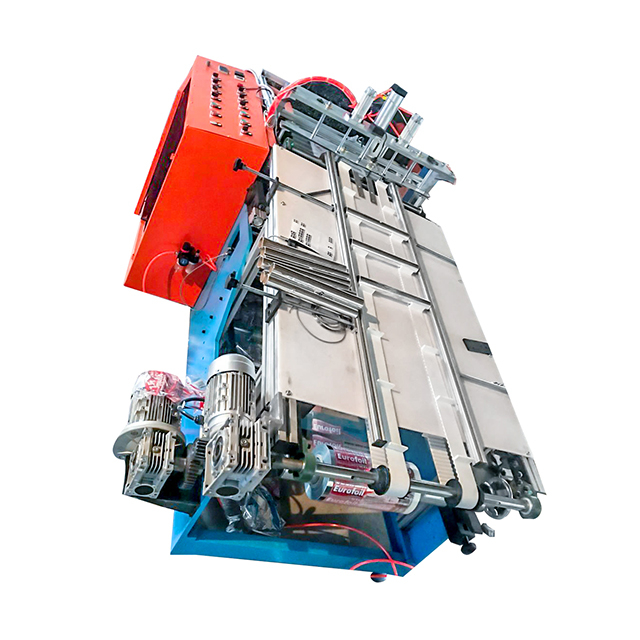

Automatic Shrink Film Packaging Machine

Main Technical Parameter:

Type HAFA-900

1、Thickness of Raw Material: 2.5 micron

2、Width of Raw Material;: 200—-500mum

3、Type of Raw Material: Shrink flim (POF)

4、MaxUnwinding Diameter:450 mm

5、Inner Diameter of Raw Material Roll Core;76mm

6、Overwrapping filmlength:170-185mm

7、Max Production Efficiena: 20rols/min

8、Outer diameter of the finished rolls: 30-4

9、Max width of the product: 200-470mm

10、AirPressure: 0.65kmp

11、OveralDimension: Length3200mm Width 450mm High1500m

12、Total Power:approx7KW

13、Powersupply:380V,50Hz,3ph

14、Total Weight: approx 1500Kg
