HAFA-880
FITLIFE

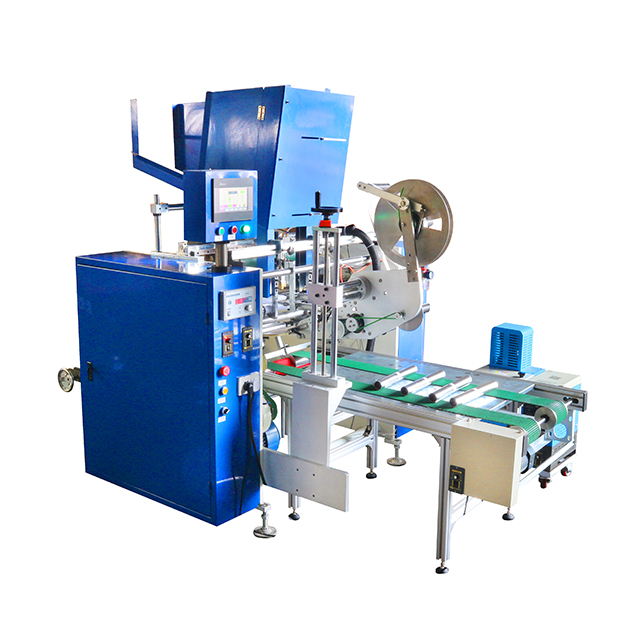

I. Application The machine is the fully automatic shunt winding and cutting machine with foil-type materials. It is researched by Zhangjiagang Fitlife machine Co., Ltd. in the latest time and applied to the shunt winding processing work of the soft foil materials.

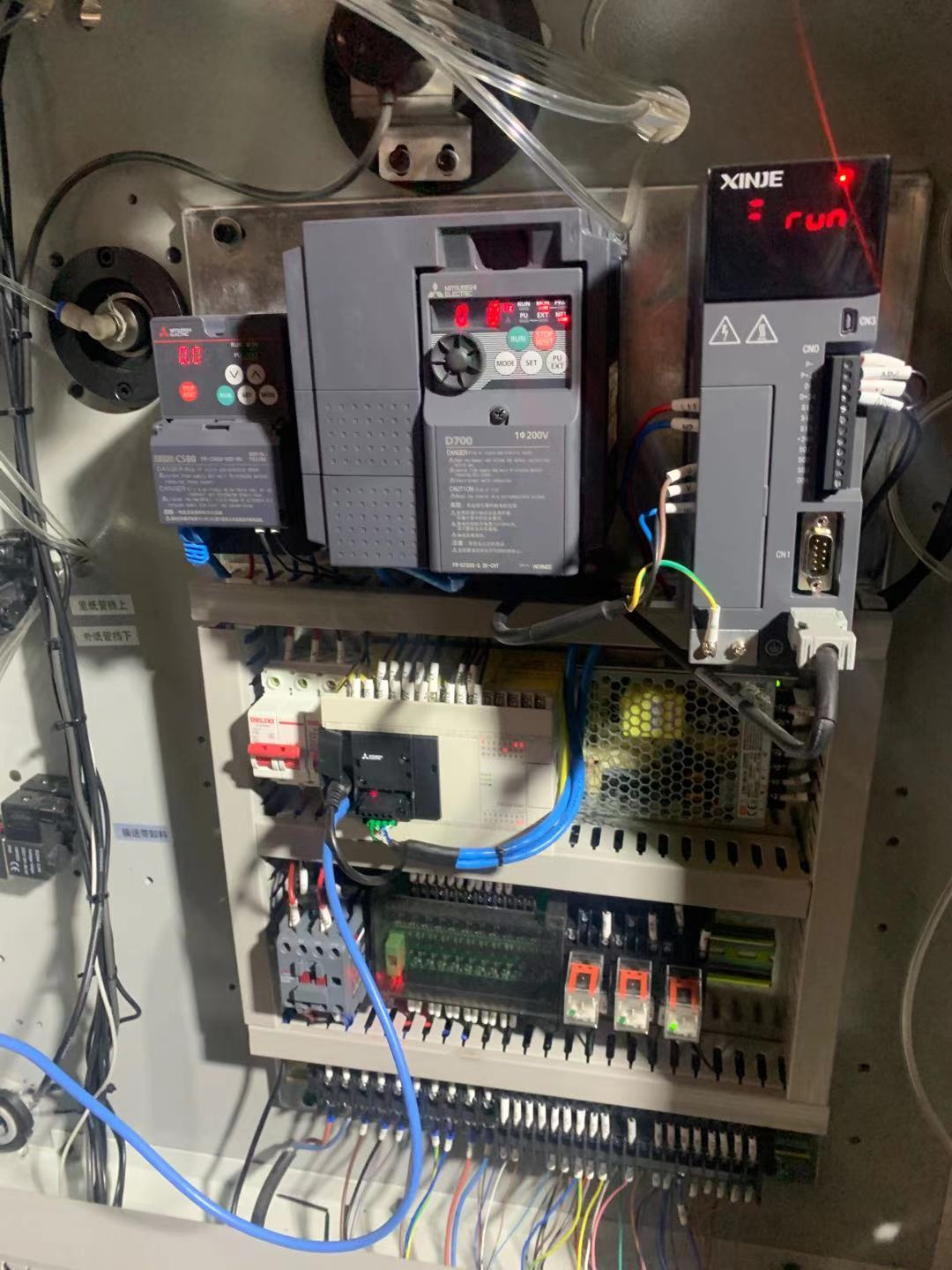

Because of this machine adopts advanced PLC as control system, realize the complete machine run, automatic feeding and baiting; aluminum foil cut long settings and display; stepless speed adjusting and display of the aluminum foil run line speed; shutoff control; fault auto-diagnosis etc. function.
Aluminum foil transmit, the squirrel-cage rotation is adopt inverter and servo motor driver. Thus this machine has simple operation, safe and reliable, high automation degree and the highest production efficiency.
II.Main technical parameter
1、(Thickness of Raw Material)： 0.009—0.025mm
2、(Width of Raw Material)： 250—600mm
3、(Maximun Unwinding Diameter)： φ800mm
4、(Inner Diameter of Raw Material Roll Core)： φ75mm、φ150mm
5、(Inner Diameter of Finished Product Roll Core):φ25mm、φ30mm、φ38 mm
6、(Cutting Length of Roll)： 3—300m
7、(Production Efficiency)： 2-3m/sec
8.(Decoil Centering Stroke)： +/-20mm
9.(Air Pressure)： 0.5Mpa
10.(Engine Model)： Mitsubishi servo , Mitsubishi PLC, Omron meter counter
