High Efficiency Automatic Aluminum Foil Slitting Rewinding Machine

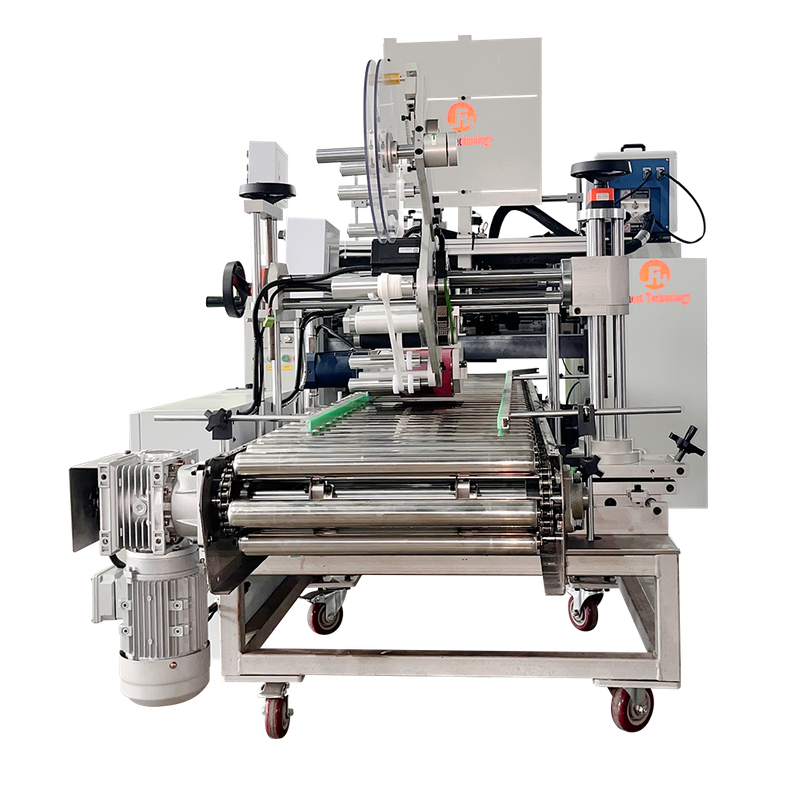

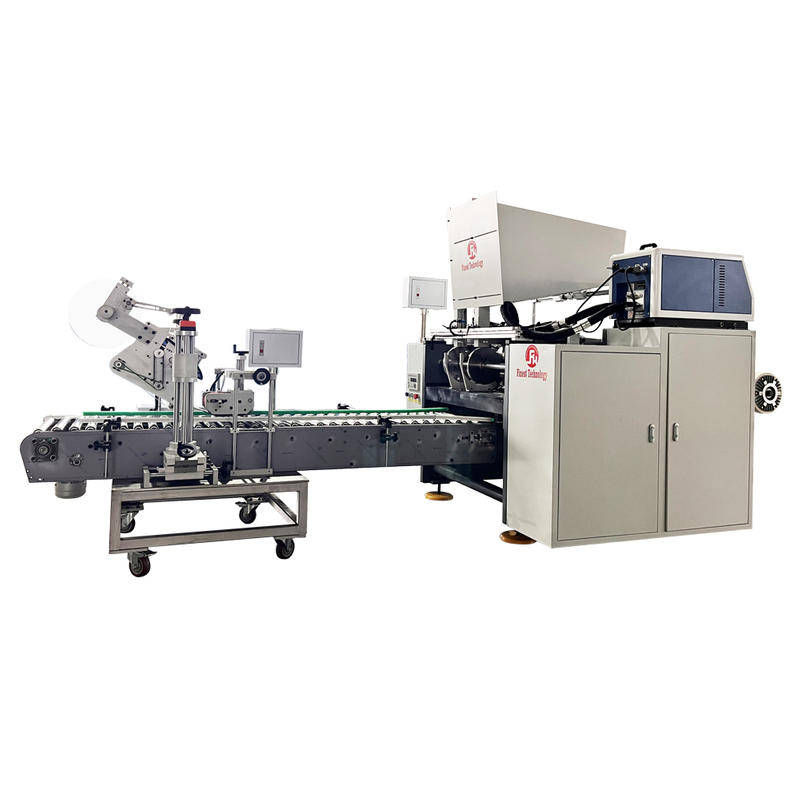

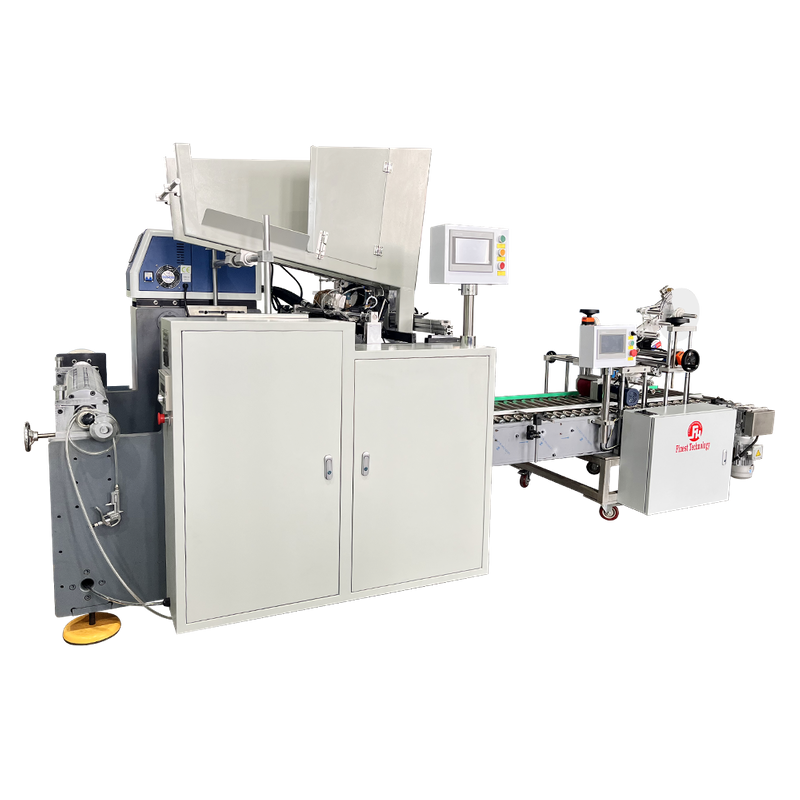

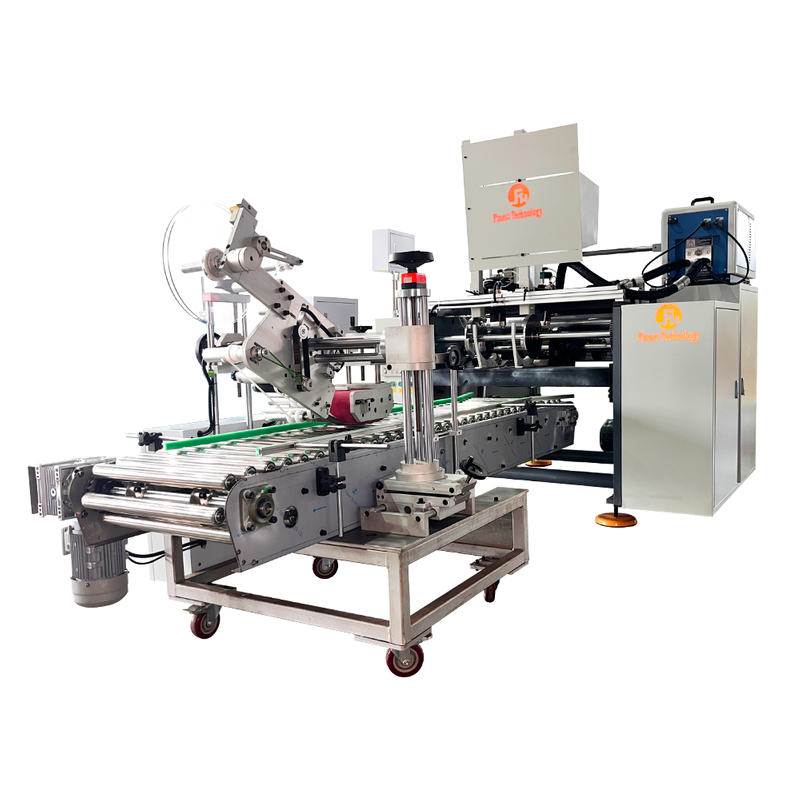

The Automatic four-shafts Aluminum Foil Cutting and Rewinding Machine. This machine adopts Mitsubishi servo and Mitsubishi PLC, Omron meter counter. The maximum production speed can reach 25pcs/min (5m). The machine has three cursor recognition, automatic paper tube, automatic material cutting, automatic labeling. After the aluminum foil sealing technology is upgraded, it can be completed by short standard. Warranty period up to 4 years, do not worry about after-sales problems.Welcome customers to visit the factory, we look forward to meeting with you.
Availability:
Quantity:
  • HAFA-890H

  • FITLIFE


Performance Features:

1.Interational famous brand accessories, Mitsubishi PLC, Mitsubishi servo, Siemens panel, Omron meter meter

2. Photoelectric detection of paper tube core,detection of aluminum foil raw materials, labeling detection

3.Short standard closing, more cost saving

4.5 meters a roll, 25 rolls a minute

5. Warranty cycle up to 4 years

6.The most cost-effective rewinder


The machine has three cursor recognition, automatic paper tube, automatic material cutting, automatic labeling.

After the aluminum foil sealing technology is upgraded, it can be completed by short standard.

Warranty period up to 4 years, do not worry about after-sales problems.

IMG_3482

4 shafts

27-短标签

Short Label

14主电箱.

Mitsubishi PLC

After-Sales Service

Training how to instal the machine, training how to use the machine.

Engineers available to service machinery overseas.


Technical Parameters:

o Thickness of raw material:0.008mm-0.04mm

o Raw material width:100-500mm

o Maximum unwinding diameter:Φ600mm

o Inner diameter of raw material roll core: Φ76mm or Φ152mm

o Inner diameter of finished product roll core:Φ25mm,Φ30mm and Φ38mm

o Cutting length of roll:3m-300m

o Production efficiency:Calculation with 5m of roll cutting length, 5-30 rolls/min

o Magnetic powder brake: 25N.Mo Magnetic powder clutch: 25N.M

o Complete machine power:6.5KW

o Overall dimension:4,000mm×1,400mm×1,820mm

o Complete machine weight:About 1,900kg


微信图片_20231017163841

微信图片_20230725141231

1. Are you trading company or manufacturer ?

We are factory.


2.What kind of terms of payment?

T/T, L/C,D/A,D/P,Western Union are available.


3.Can you do Customization & Reproduction if I provide a photo?

Yes, we do Customization & Reproduction service, please check the details and sample above. You need to send the pictures to our email, tell us the specification you want, Then we will quote you exact price.We will take photos for you check.


4.Does the packaging safe and arrive in good conditions?

Yes, Safe Packing guarrantee, all the products will arrive your door under good conditions. We response to problem of shipping if there unfortunately is.


5.How long does it usually take to deliver the product?

We'll make the shipment to you immediately.It will take about 18 to 40 days arrive worldwide. Accurate delivery time depends on the specific quantity


6.Is drop shipping abailable?

Yes, it is, we can send to worldwide.
