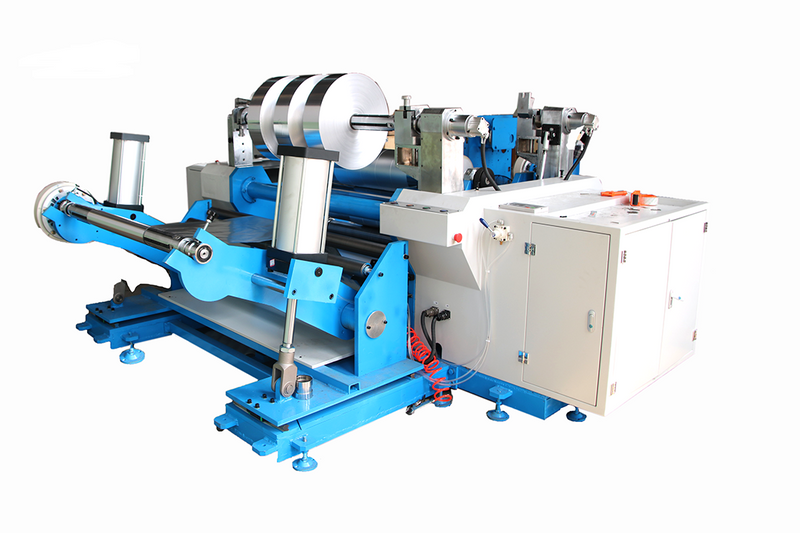

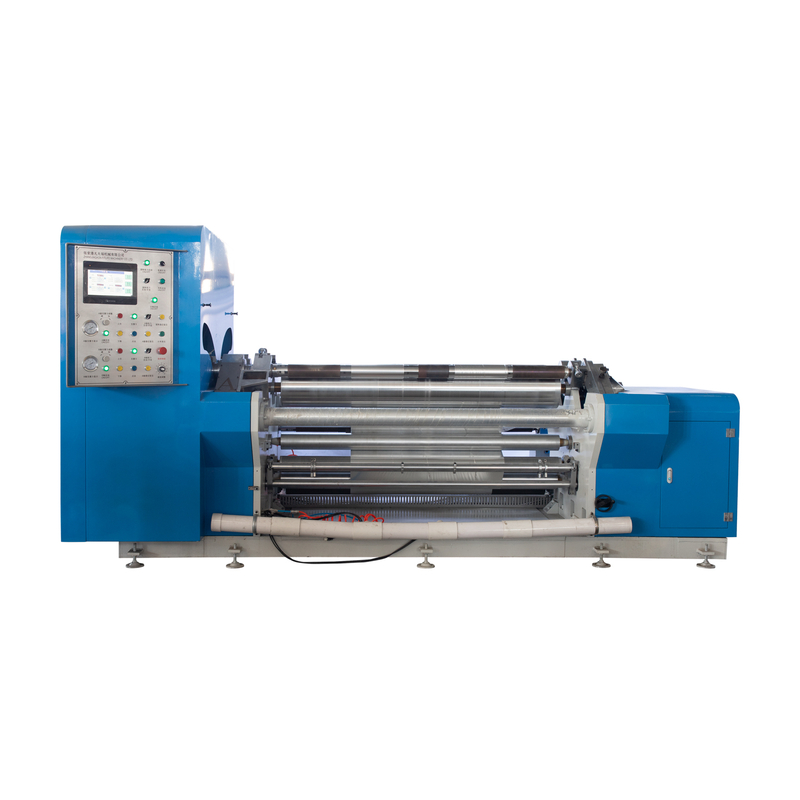

High Speed Technology Automatic Slitting Paper/Film/Aluminum Foil Slitter Rewinder Machine

1.Automatic loading and unloading
2. Automatic call deflection function, flat cutting surface
3. Maximum load capacity of winding air shaft can reach 400kg
4.Automatic tension control
5. The error of finished product width is less than 0.1mm
6. The surface of the finished roll is smooth, flat and without wrinkles.
7.The feature of machine is stable, security, efficient etc.
Availability:
Quantity:
  • HAFA-1650

  • FITLIFE

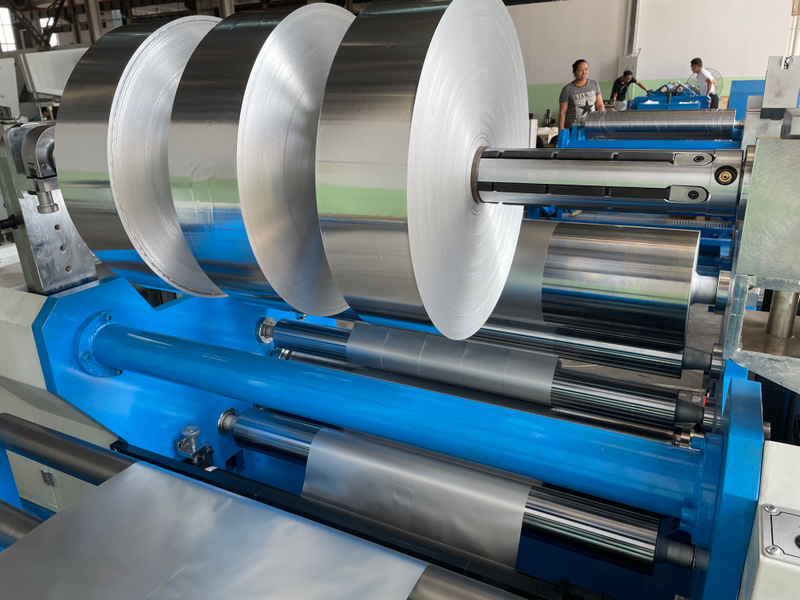

1. Raw Material: Aluminum Foil

2.Thickness of Raw Material:0.006 -0.1mm

3. Width of Raw Material: 120 -1600mm

4.Maximun Unwinding Diameter: 800mm

5.Maximun Weight of Raw Material: 800KG

6.Inner Diameter of Raw Material Roll Core: 76mm

7.Inner Diameter of Finished Product Roll Core: 76mm

8.Minimum Width of Finished Product: 50mm

9.Width error of finished product: +/- 0.1mm

10.Maximum winding diameter: 600mm

11.Maximum Bearing Weight of Rewinding Expansion Shatf: 400KG Production Efficiency: 0-300m/minute

12.Automatic Deviation Correction Travel: 140mm

13.Air Pressure: 0.6Mpa

14.Engine Model : Delta PLC, Mitsubishi Electromagnetic Clutch, YASKAWA Inverter, Mitsibishi Tension Controller, DORNA Frequency Converter Motor.

15.Tension Control: Automatic

16.Magnetic Powder Clutch: 200 N.m

17.Overal Dimension: K (Length)3700mm 5 (Width) 1800mm (High) 1500mm

18.Total Power: approx 18KW

19.Total Weight: approx 5800Kg

20.Power supply: 380V, 50Hz, 3ph
