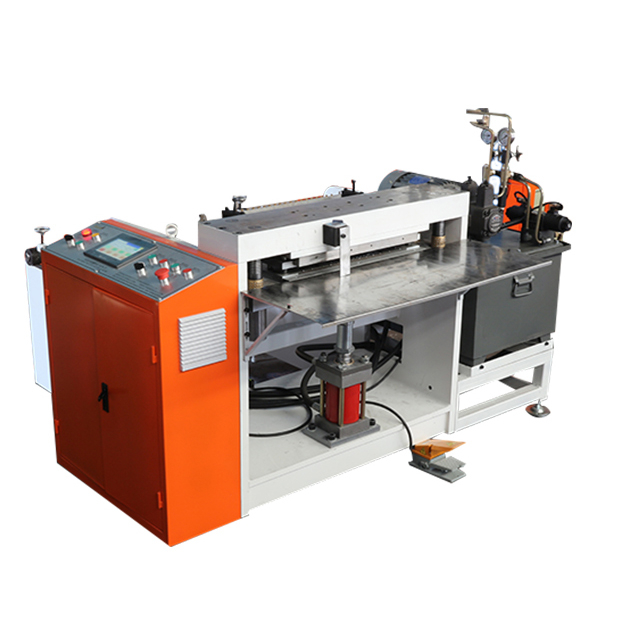

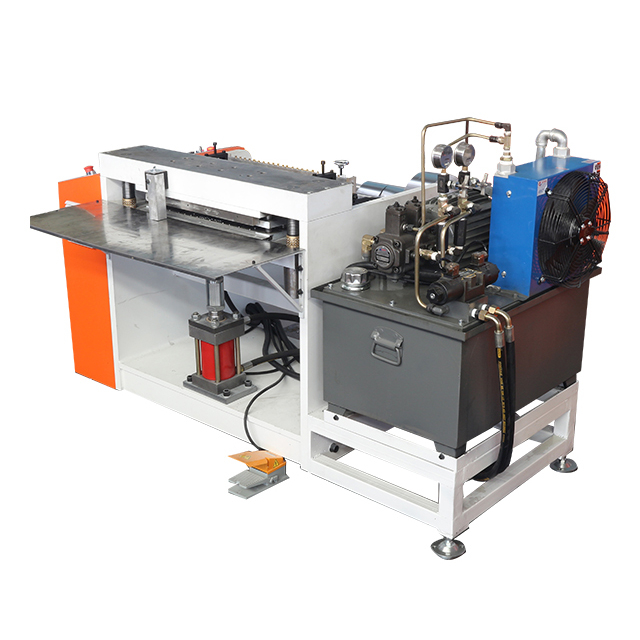

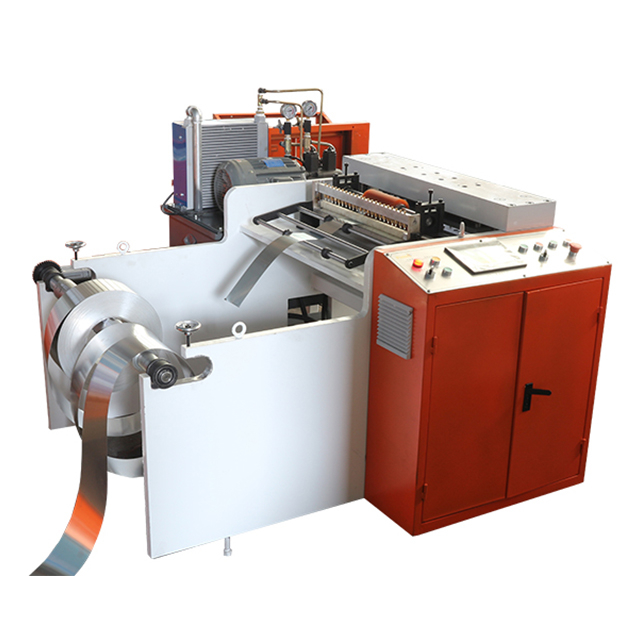

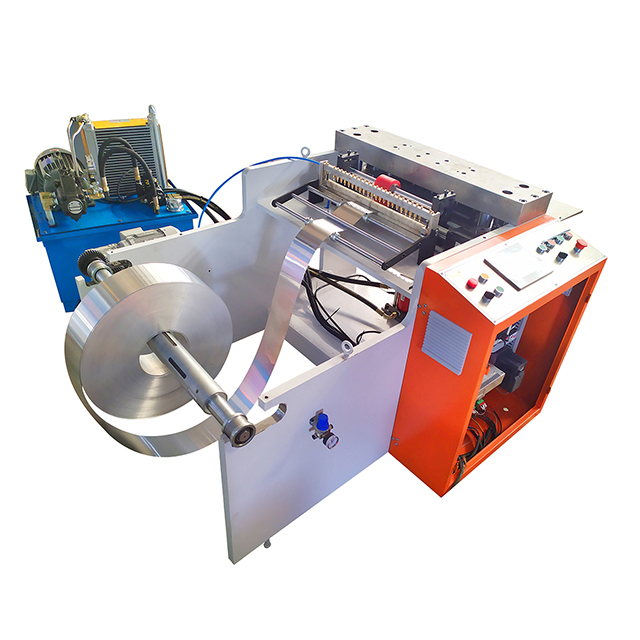

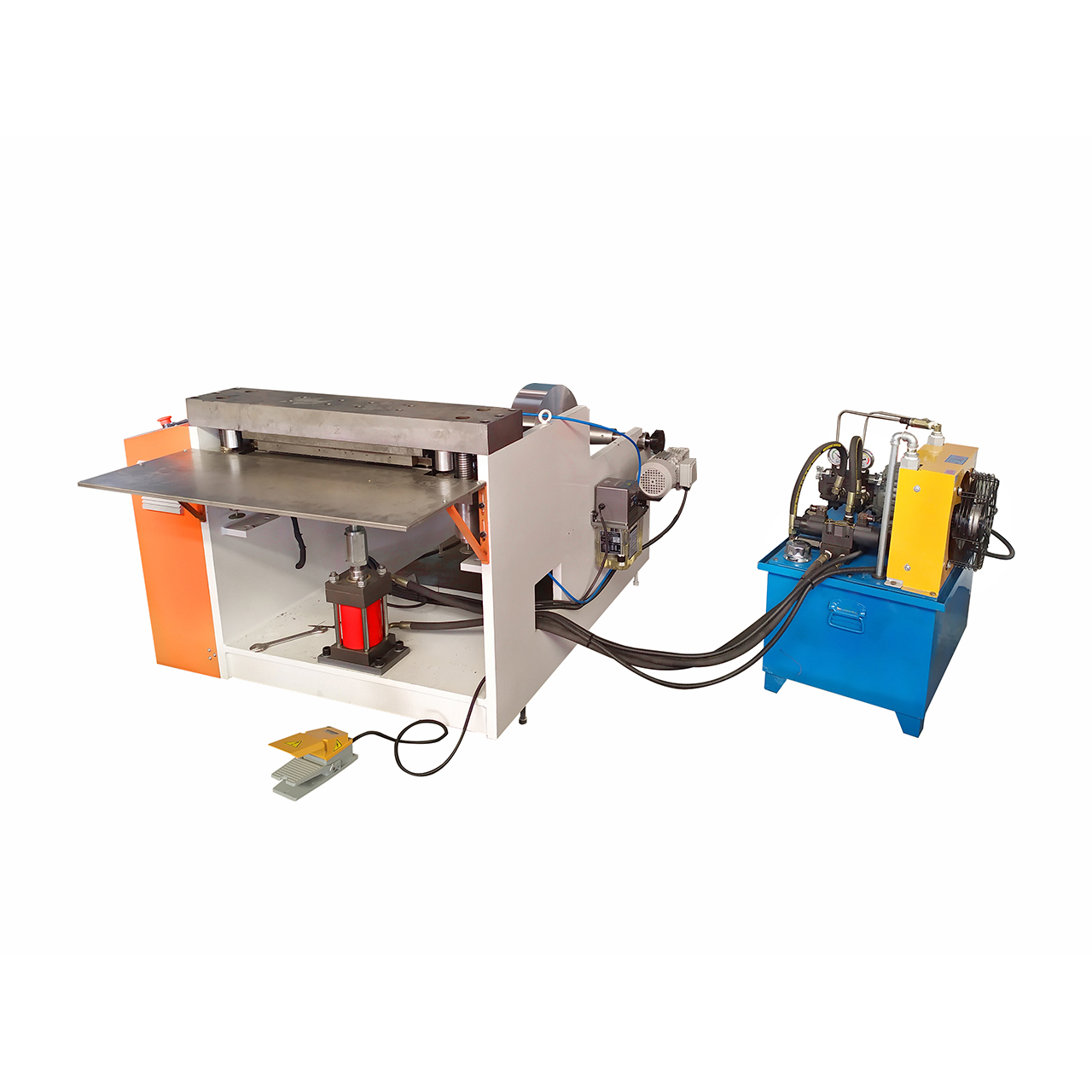

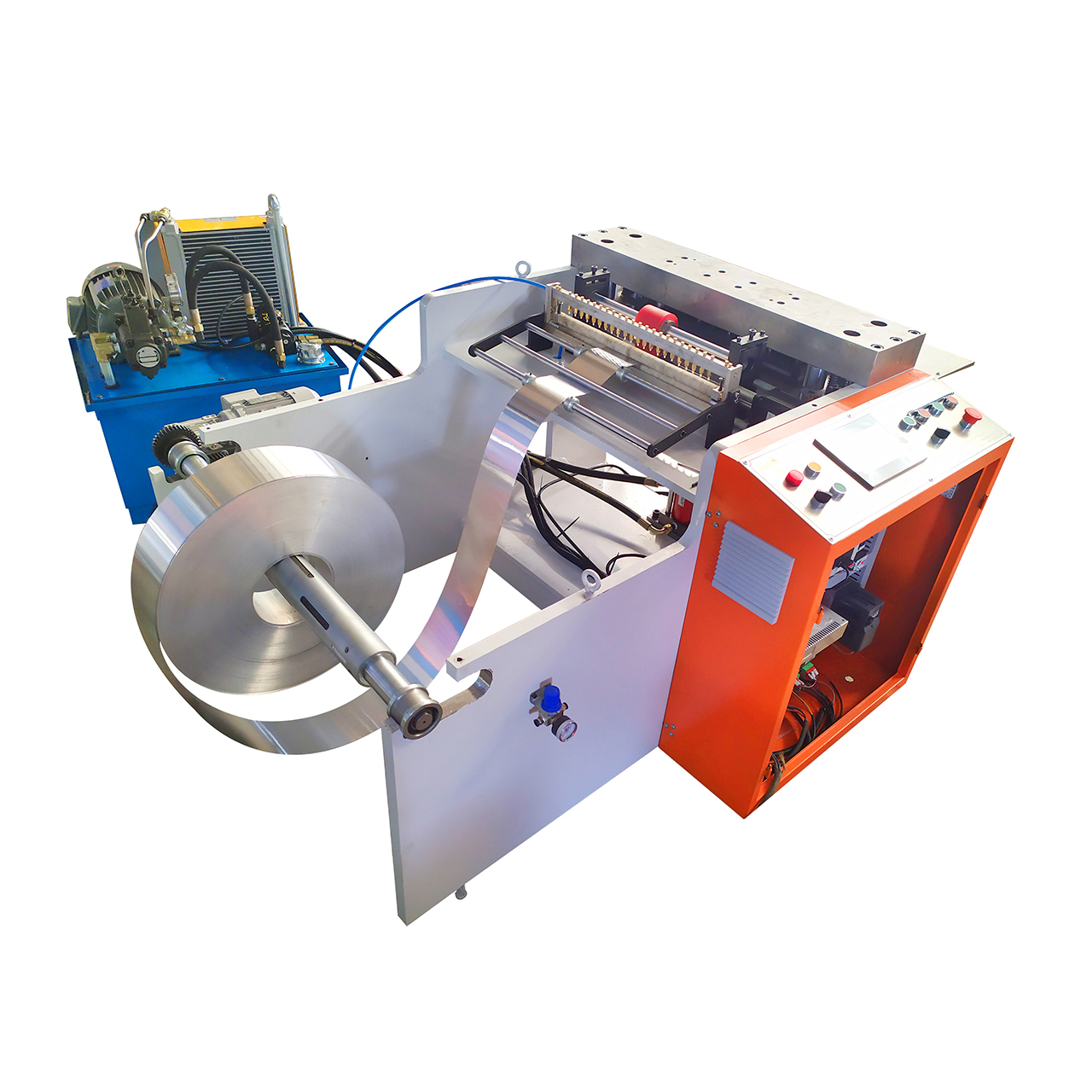

Semi-auto Saw Blade Press Machine

Fitlife Saw blade machine can make all kinds of cling film or aluminum foil color box , from 200g to 600g, or 3 layer paper .
it can add aside or in the middle for the tooth. it can cut foil and film or baking paper very easy .

Machine Size:
Quantity:
  • HAFA-70
  • FITLIFE
  • 84624900


1, Equipment model NO.: HAFA-70

Type: Sawtooth Machine

Saw blade raw materil :Alu(0.2mm) or Steel (0.13-0.15mm)

Die cutting tool: metal mold Automatic

Grade: automatic feeding raw materiel

Application: Sawtooth on paper packaging material

Maximum pressure: 600KN

Major markets: global

Trademark: FITLIFE

Place of Origin: China (Mainland)

Material maximum width : 460 mm

Saw blade size : 100-450mm

Production power : 5KW

Material maximum diameter :700 mm

speed  50-70pcs / minute

Feed length 3-30mm

Air shaft : 3inch

Machine Size : 1400 *1240* 980 mm  (L*W*H)

Hydraulic station size: 750*600*900mm  (L*W*H)

Oil: #46

Voltage : 380V / 50HZ

Weight 1100 kg
