Automatic Shrink Film Packing Machine for Aluminum Foil Roll

Kitchen foil roll, POF/PP film roll and others rolls could be shrink wrapped by this ideal machine. This machine can be combined with Kitchen Foil Roll Rewinding Machine as one whole production line, also used separated as wrapping machine.

Availability:

Quantity:



Inquire Add to Basket

Model:
HAFA-900
Brand:
FITLIFE

Product Description

PRODUCT SPECIFICATION

- Roll feeding, film feeding, cutting, wrapping and gluing

- Full automatically

- Adopts Frequency Converter, Speed can be adjusted.

- Adopts photocell tracking system

- Costs effective with high production wrapping rate

- With advantage gluing system adopted to ease complete production

- Auto Tension Control, Adjustment and Alignment

- Complete with all safety features

1、Thickness of Raw Material: 25 micron

2、Width of Raw Material;: 200—-500mum

3、Type of Raw Material: Shrink flim (POF)

4、MaxUnwinding Diameter:450 mm

5、Inner Diameter of Raw Material Roll Core;76mm

6、Overwrapping filmlength:170-185mm

7、Max Production Efficiena: 20rols/min

8、Outer diameter of the finished rolls: 30-4

9、Max width of the product: 200-470mm

10、AirPressure: 0.65kmp

11、OveralDimension: Length3200mm Width 450mm High1500m

12、Total Power:approx7KW

13、Powersupply:380V,50Hz,3ph

14、Total Weight: approx 1500Kg

Product Detail

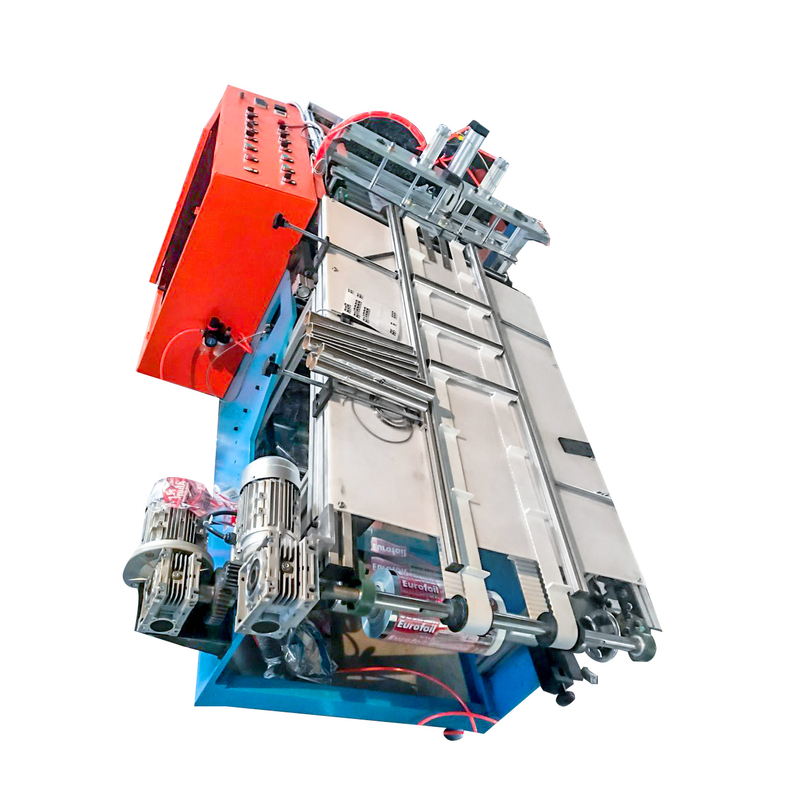

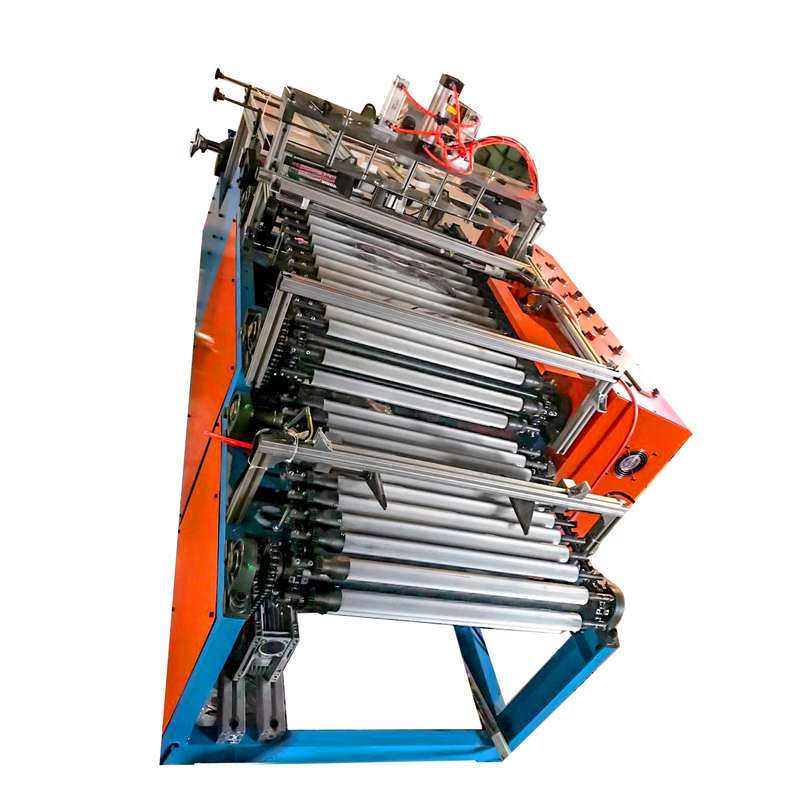

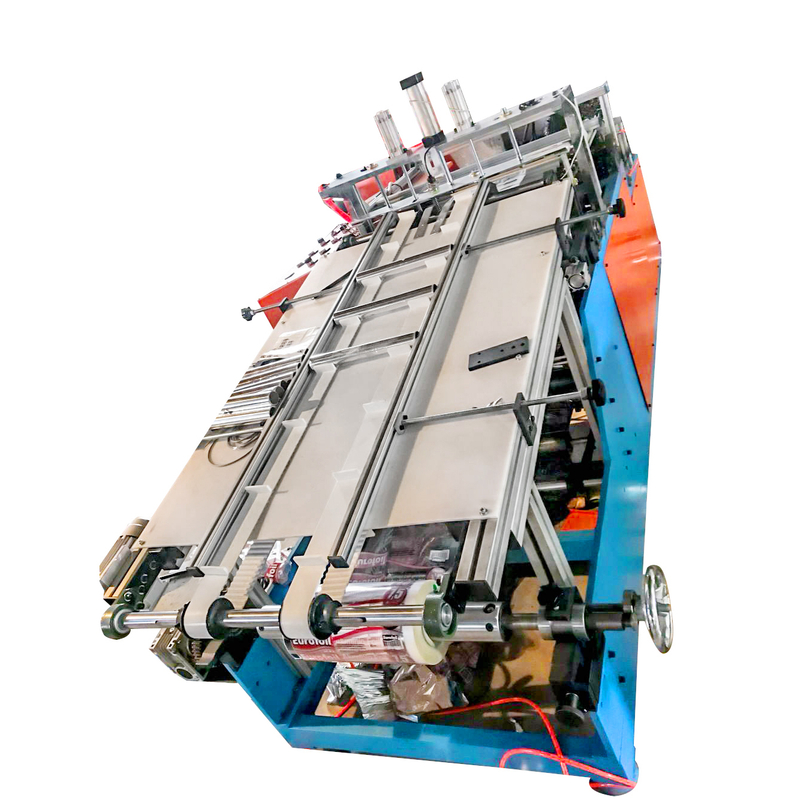

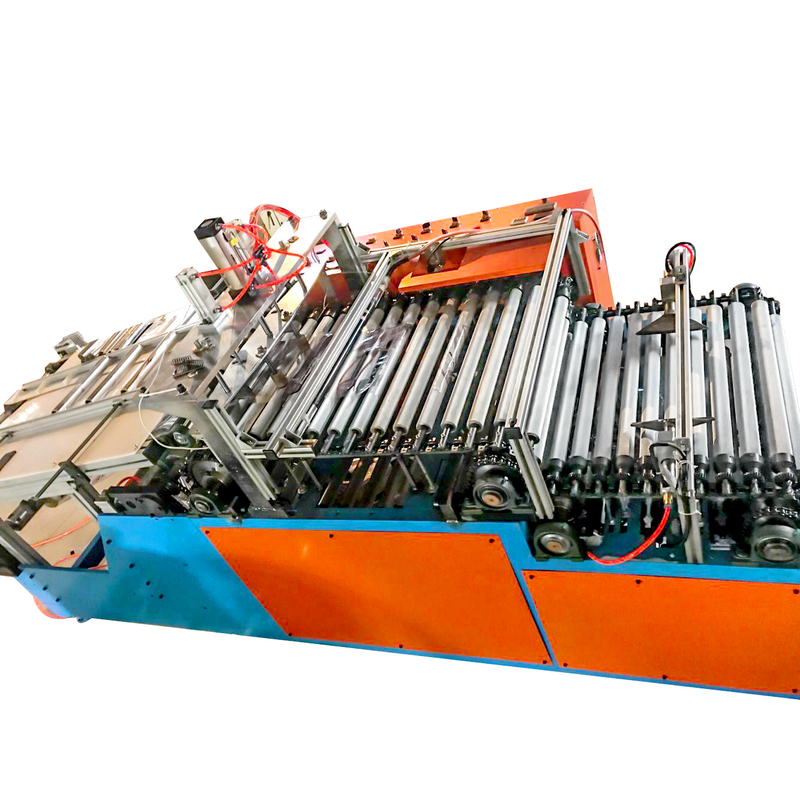

Shrink Film Packaging Machine

Automatic Aluminum Foil Roll Packing Machine

photobank (35)

Shrink Film Aluminum Foil Roll
