| Quantity: | |
|---|---|

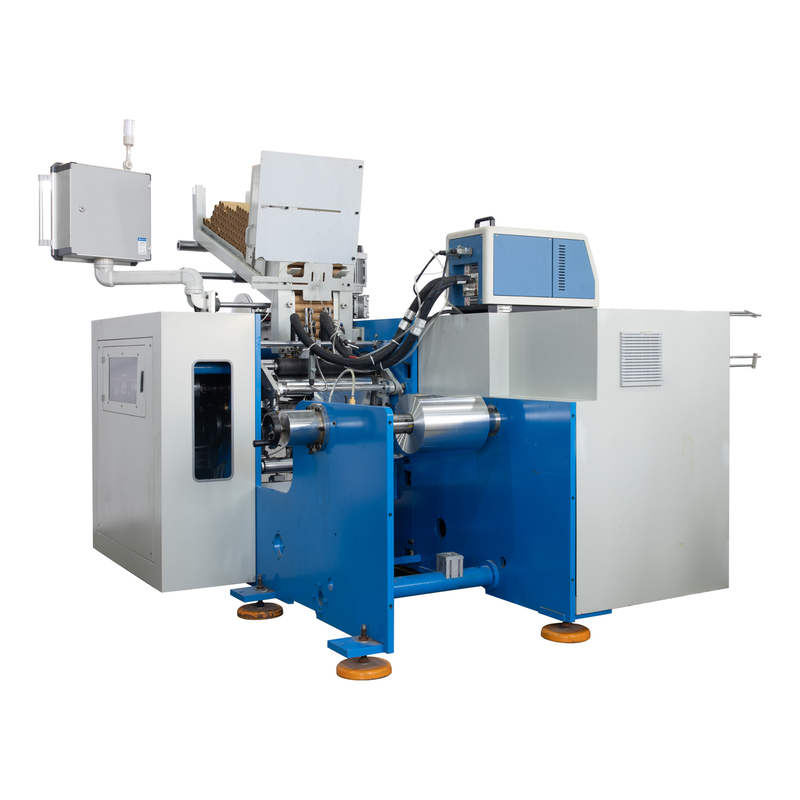

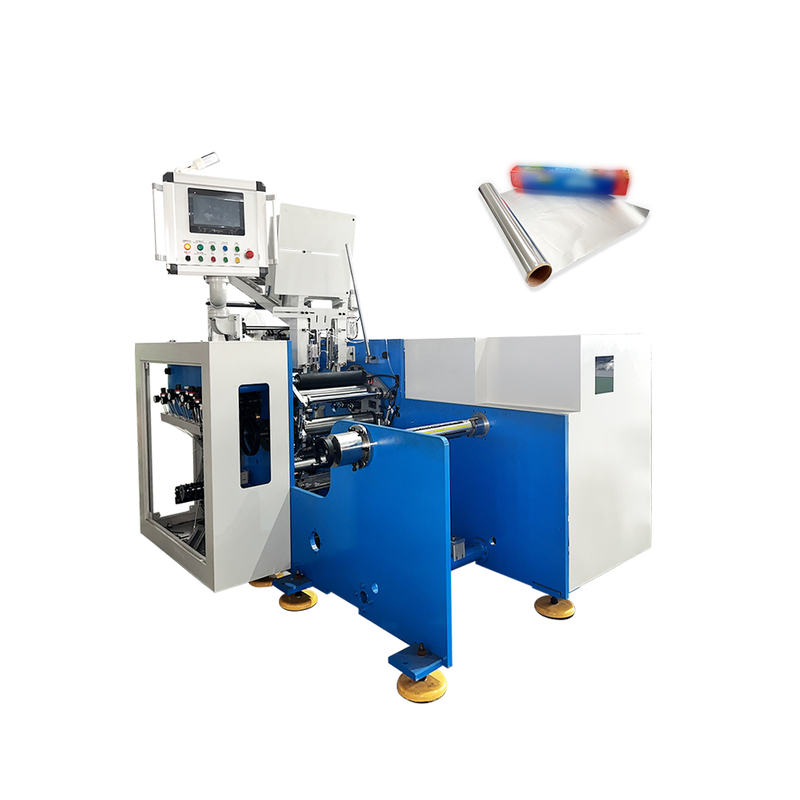

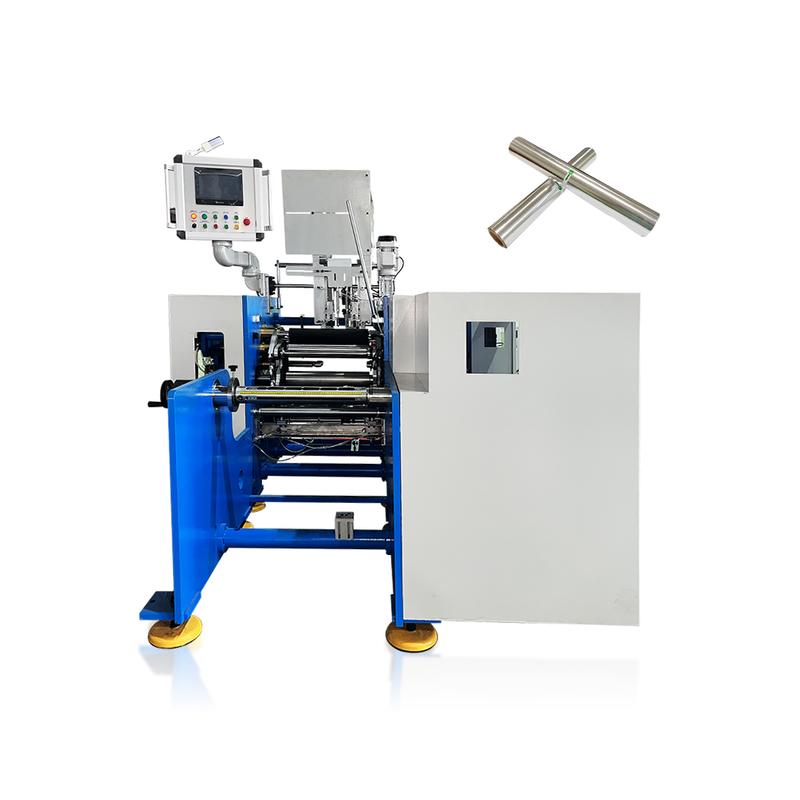

HAFA-950
FITLIFE
Performance Features:
1. Intemational famous brand accessories,Mitsubishi PLC, Mitsubishi inverter
2.Can start without glue, the finished roll is more environmentally friendly
3. Mechanical cam control, faster speed
4.Servo motor controller, high precision
5.40 rolls per minute
6. Warranty period up to 4 years
Can start without glue ，This machine adopts Mitsubishi PLC and Mitsubishi Variable-frequency Drive. The maximum production speed can reach 500m/min.
Automatic Labeling Machine

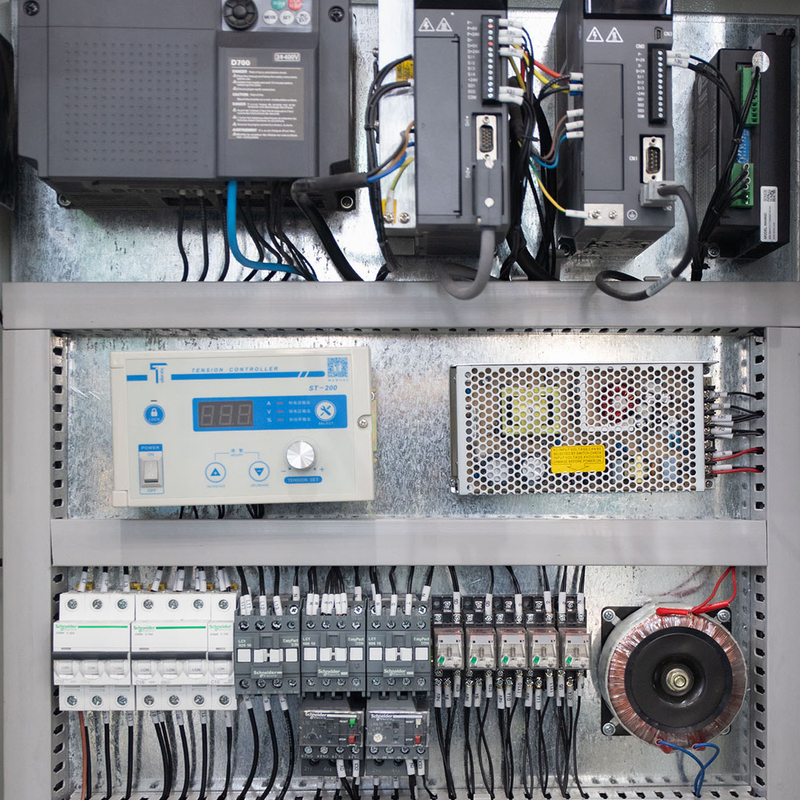

Mitsubishi PLC
Mitsubishi frequency converter
Technical Parameters:
o Raw Material:Aluminum Foil/ Baking paper/Film
o Thickness of Raw Material:0.009 -0.025mm
o Raw material width:120-500mm
o Maximum unwinding diameter:Φ800mm
o Inner diameter of raw material roll core: Φ75mm
o Inner diameter of finished product roll core:Φ25mm,Φ30mm and Φ38mm
o Cutting length of roll:5m-300m
o Maximum Production efficiency:550m/min
o Air Pressure:0.7Mpa
o Total Power:14KW
o Overall dimension:2650mm×2250mm×2250mm
o Power supply:380V/50Hz, 3ph; 220V/60Hz
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
Performance Features:
1. Intemational famous brand accessories,Mitsubishi PLC, Mitsubishi inverter
2.Can start without glue, the finished roll is more environmentally friendly
3. Mechanical cam control, faster speed
4.Servo motor controller, high precision
5.40 rolls per minute
6. Warranty period up to 4 years
Can start without glue ，This machine adopts Mitsubishi PLC and Mitsubishi Variable-frequency Drive. The maximum production speed can reach 500m/min.
Automatic Labeling Machine
Mitsubishi PLC
Mitsubishi frequency converter
Technical Parameters:
o Raw Material:Aluminum Foil/ Baking paper/Film
o Thickness of Raw Material:0.009 -0.025mm
o Raw material width:120-500mm
o Maximum unwinding diameter:Φ800mm
o Inner diameter of raw material roll core: Φ75mm
o Inner diameter of finished product roll core:Φ25mm,Φ30mm and Φ38mm
o Cutting length of roll:5m-300m
o Maximum Production efficiency:550m/min
o Air Pressure:0.7Mpa
o Total Power:14KW
o Overall dimension:2650mm×2250mm×2250mm
o Power supply:380V/50Hz, 3ph; 220V/60Hz
Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
After-Sales Service
Training how to instal the machine, training how to use the machine.
Engineers available to service machinery overseas.
