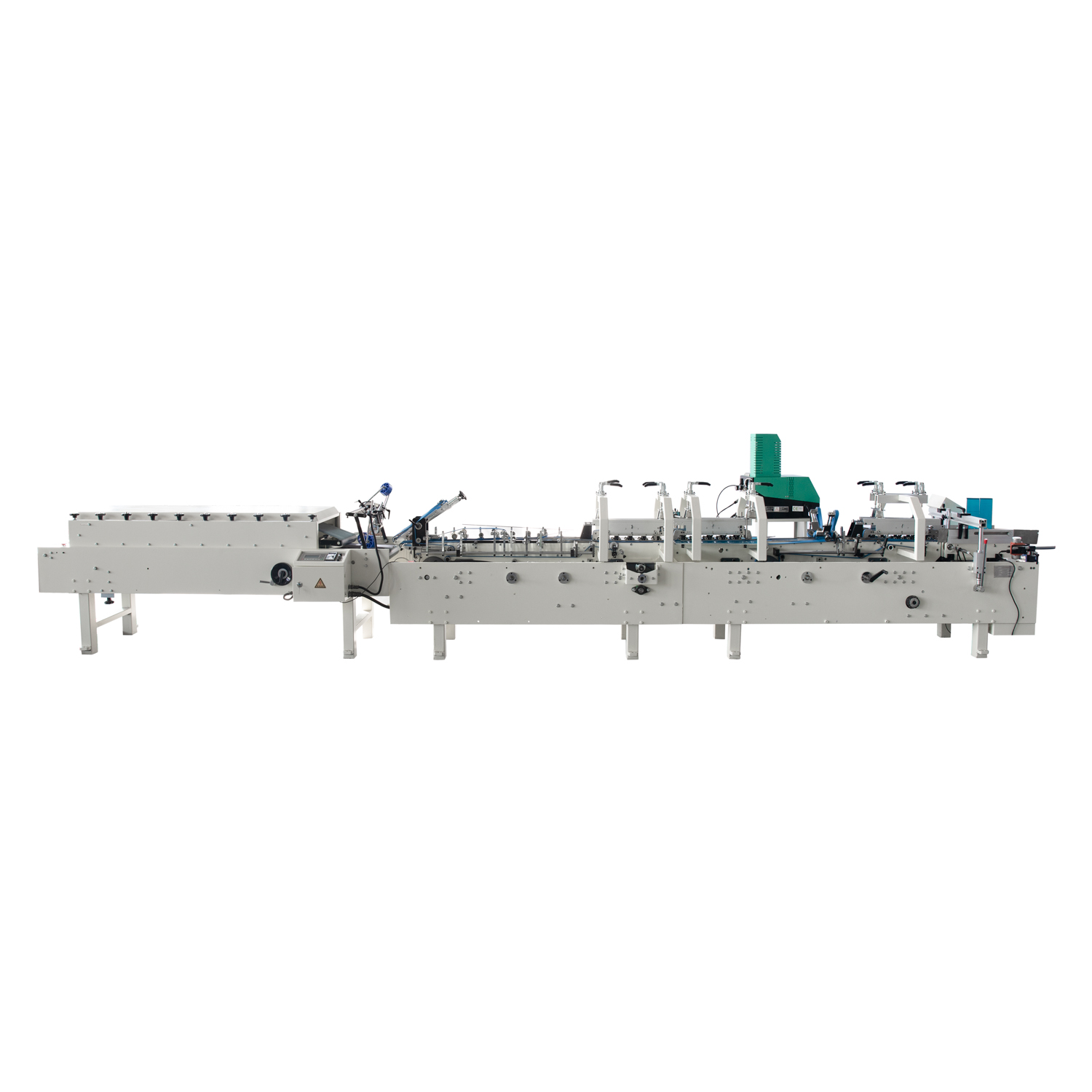

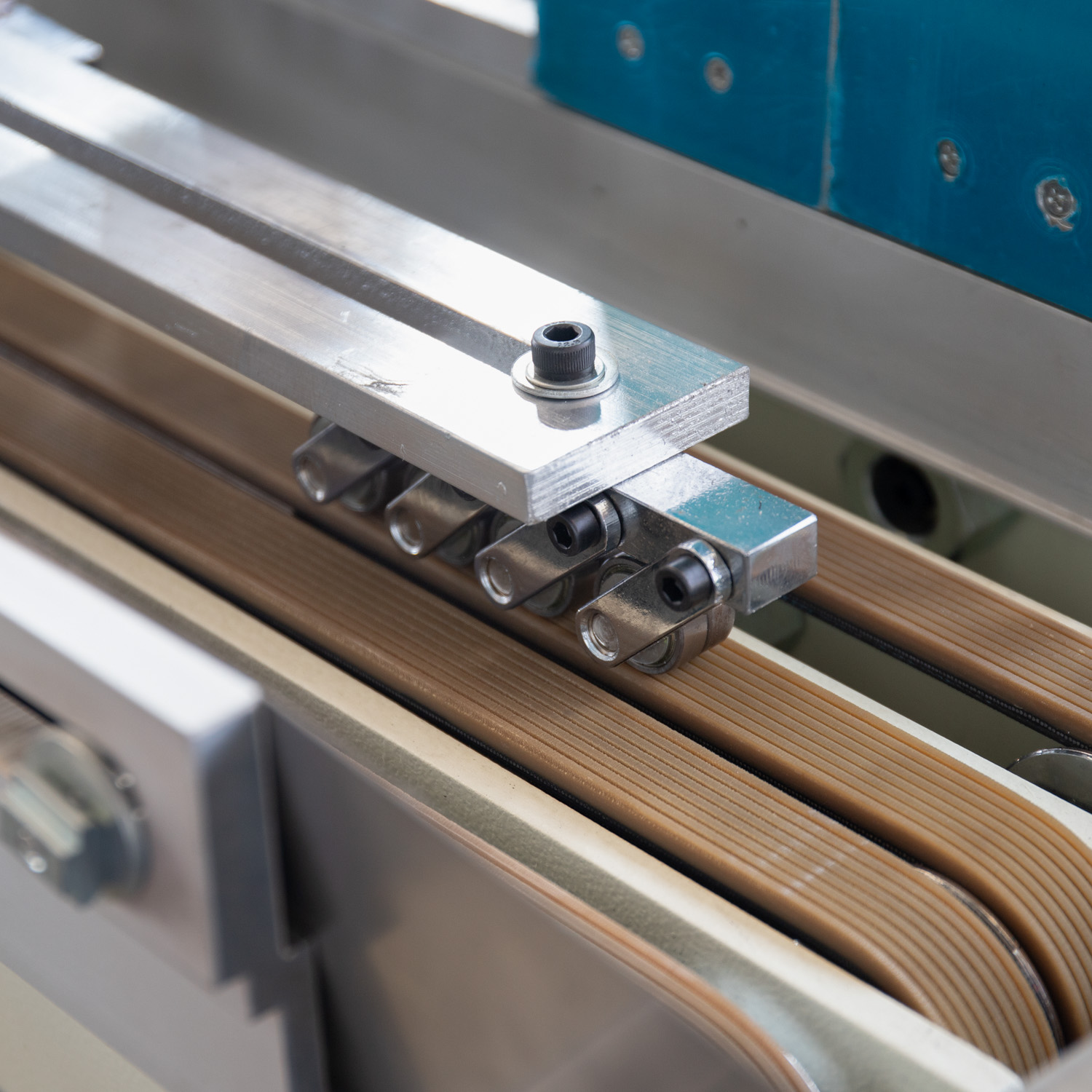

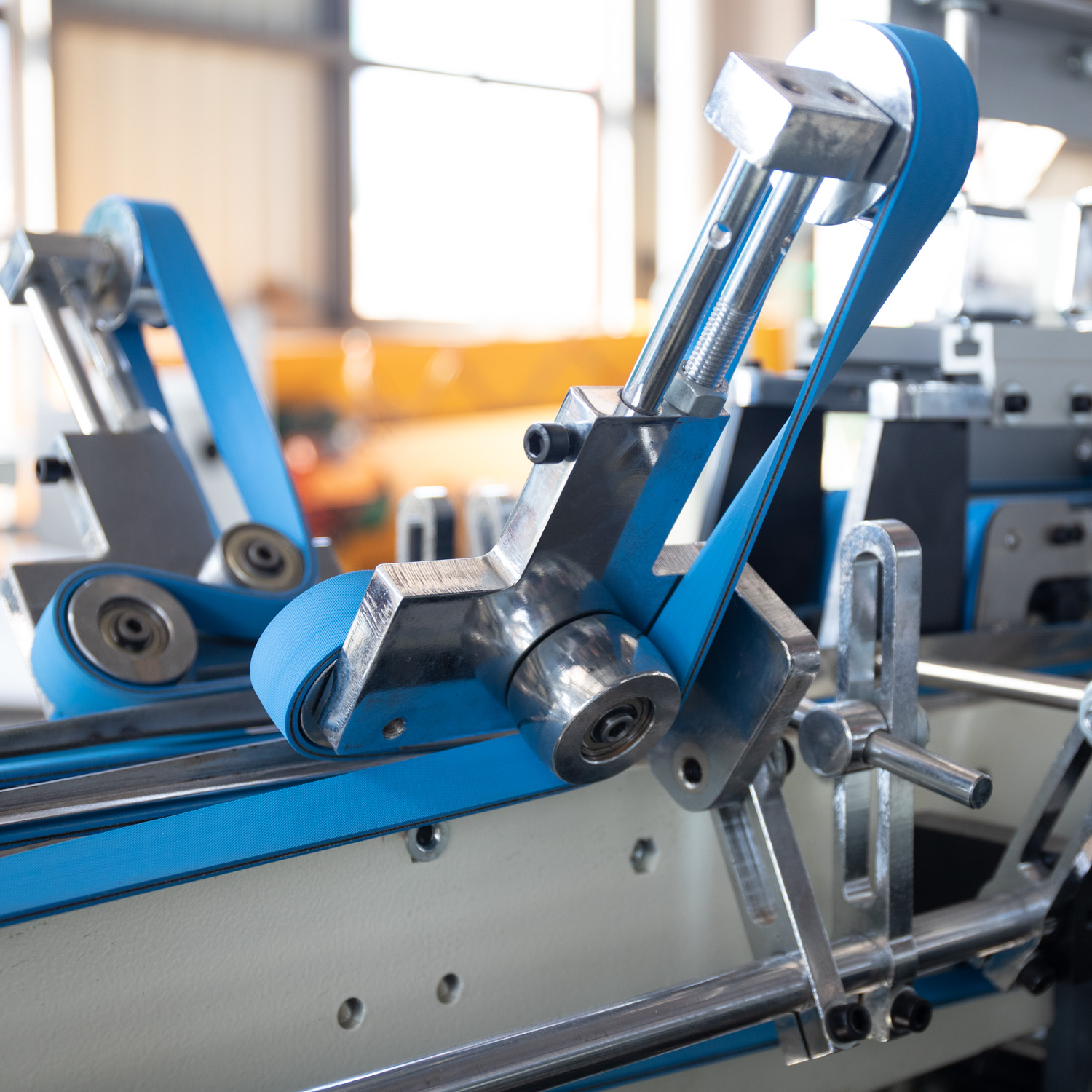

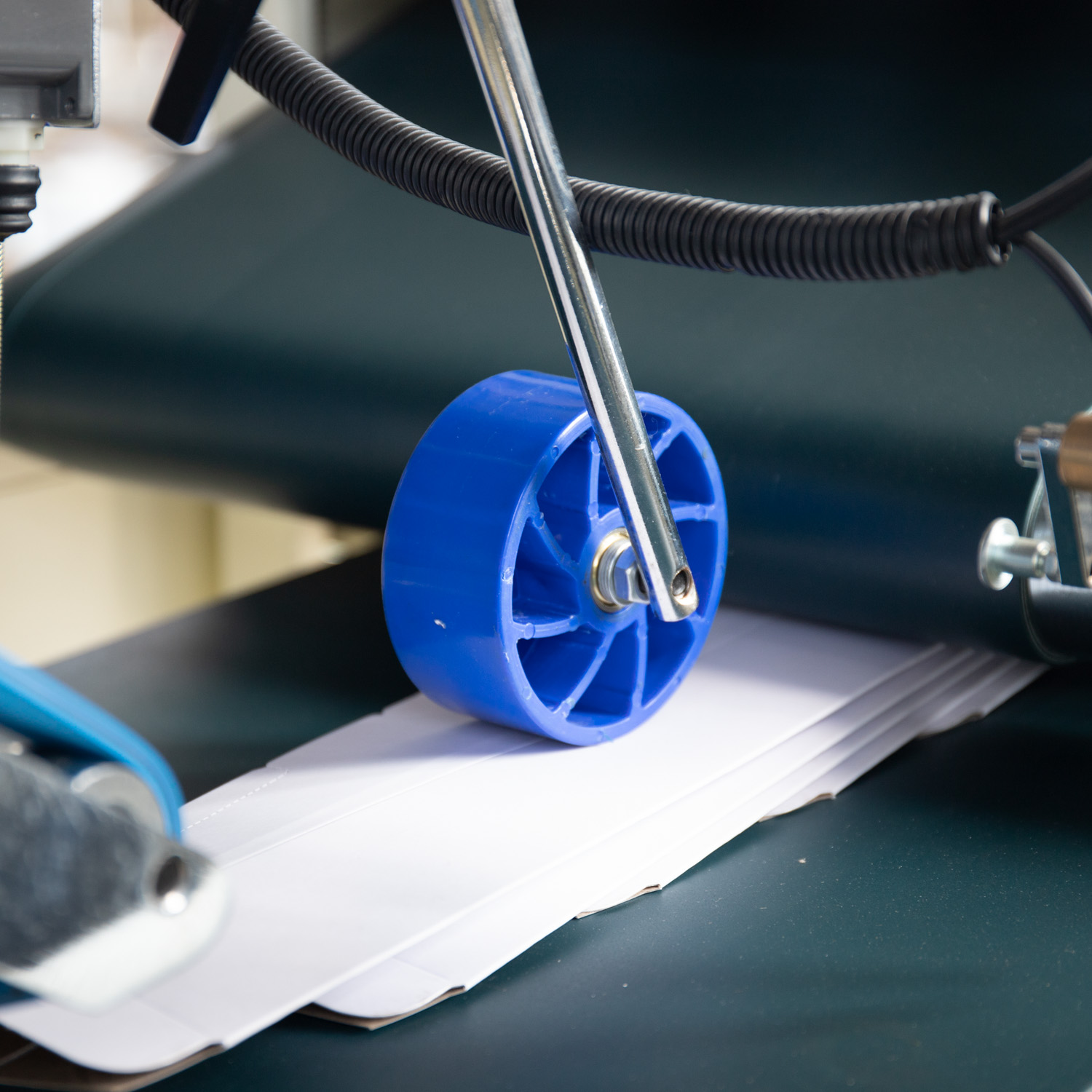

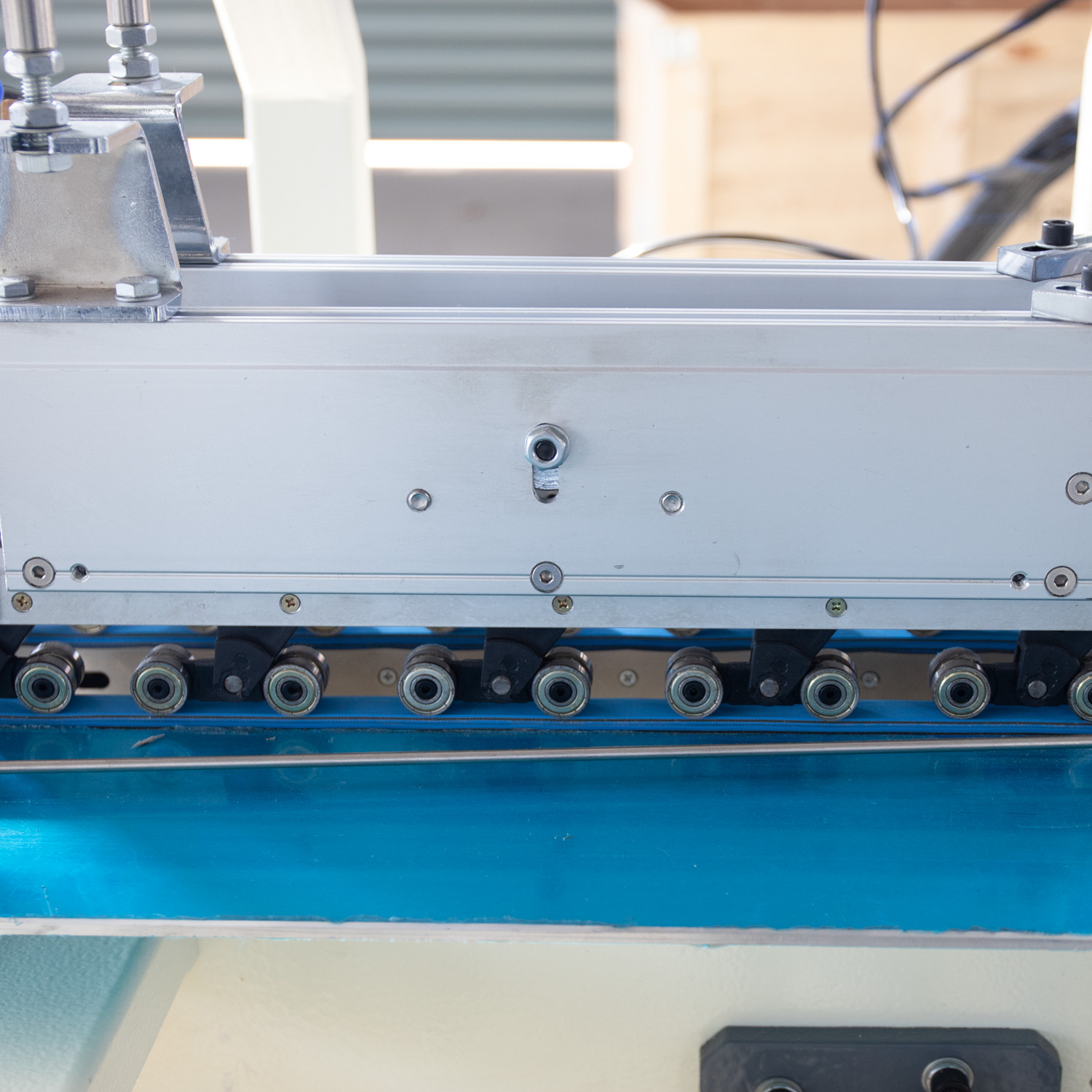

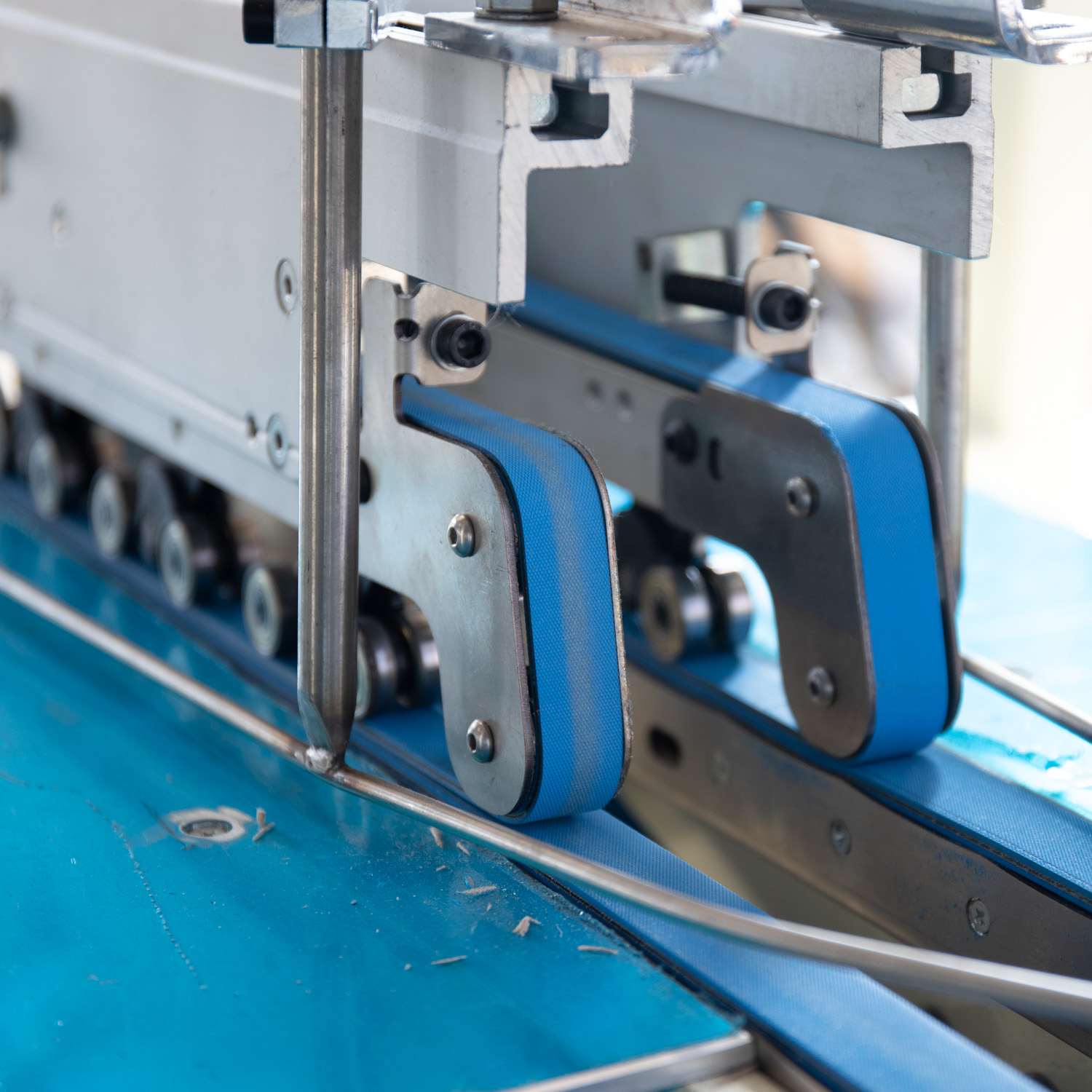

Automatic Box Folder Glue Gluing Machine

Paper can be pressed together by the processes as well as possesses the features of beautiful modeling, high speed and can made more wide boxes etc. Which can paste and manufacture from widely uses in paste process for medicine box, wine box, cosmetics box and electric equipment package etc. It's essential equipment in packing printing industry.
Availability:
Quantity:
  • HAFA-800A

  • Fitlife

|

 Application Video

|

 Product Description

1. Line speed: 0-220m/min continuous adjustable

2. Paperboard: 210-660gsm paperboard

3. Box forming:Both side folds, the both sides pre-fold and either side glue.

4. Way of folding: First, second and fourth lines fold 180 degree, third line fold 90 degree.

5. Gluing: 2 lower stations, each lower station has a grinding wheel for cleaning UV varnish and ink off the flap before gluing.

6. Glue: Water solvable

7. Speed: 6000c/min

8. Electric: Single-phase, AC220V, 3.7kw

9. Dimension: 8500×900×1300(mm)

10. The counting range: 0~999999(full-automatic)

11. This machine is able to produce four fold cardboard packing boxes.

|

 Performance Features

1.The complete machine adopts Siemens PLC control and safety & reliability.

2.In service, material receiving, gluing, winding and cutting, etc. are all automation control.

3.Without glue, winding and decrement of production cost

4.The winding adopts automatic gear shifting control with higher effect.

5.Squierrelcage operation adopts servo control, exact positioning without accumulated error.

6.Rolling small shaft delivery mechanism and exact safety.

7.Wallboard structure and smooth stabilization.

8.Constant tension unwinding and winding stabilization.

|

 Company Profile

公司

Zhangjiagang Fitlife Machinery Co.,Ltd is founded in 1992,It has registered capital of 2,800,000 USD,located in world famous tourism city Suzhou,100km away from Shanghai.


The company is dedicated to R&D, production and sales of aluminum foil related products and machines, such as household aluminum foil, hairdressing foil, silicone oil paper, aluminum foil jumbo roll, aluminum foil container, aluminum foil rewinding machines, Automatic box folding gluing machine, cartoning machine and aluminum foil container production line etc.


More than 90% of its products are exported abroad. With the pace of globalization, the company spares no effort in becoming a first-class supplier of such products.

|

 Data Sheet

MaxLine Speed 180m/ min
Suitable PaperMedium

210~ 600g/m2

Pasting BasicMode

Edge pasting in general two sides are also OK

PaperFeeding Mode

Automatically and continuously

Using Adhesive

Hot melt adhesive or Cold glue

Total Powe

approx AC 220V/380V,22 KW

Total Weight

approx 1500Kg

Overal Dimension

8000mm*900mm*1300mm

Counting range

9~999999 (Full-automatic counting)
