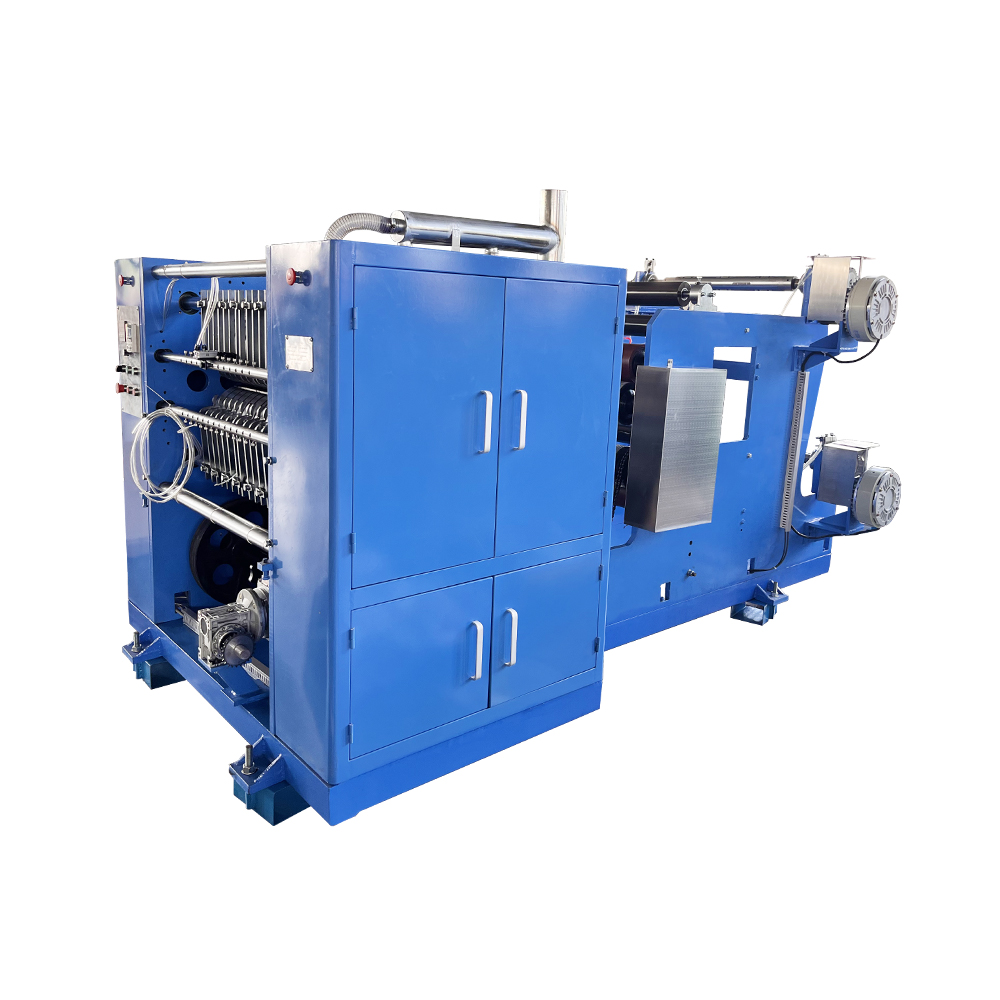

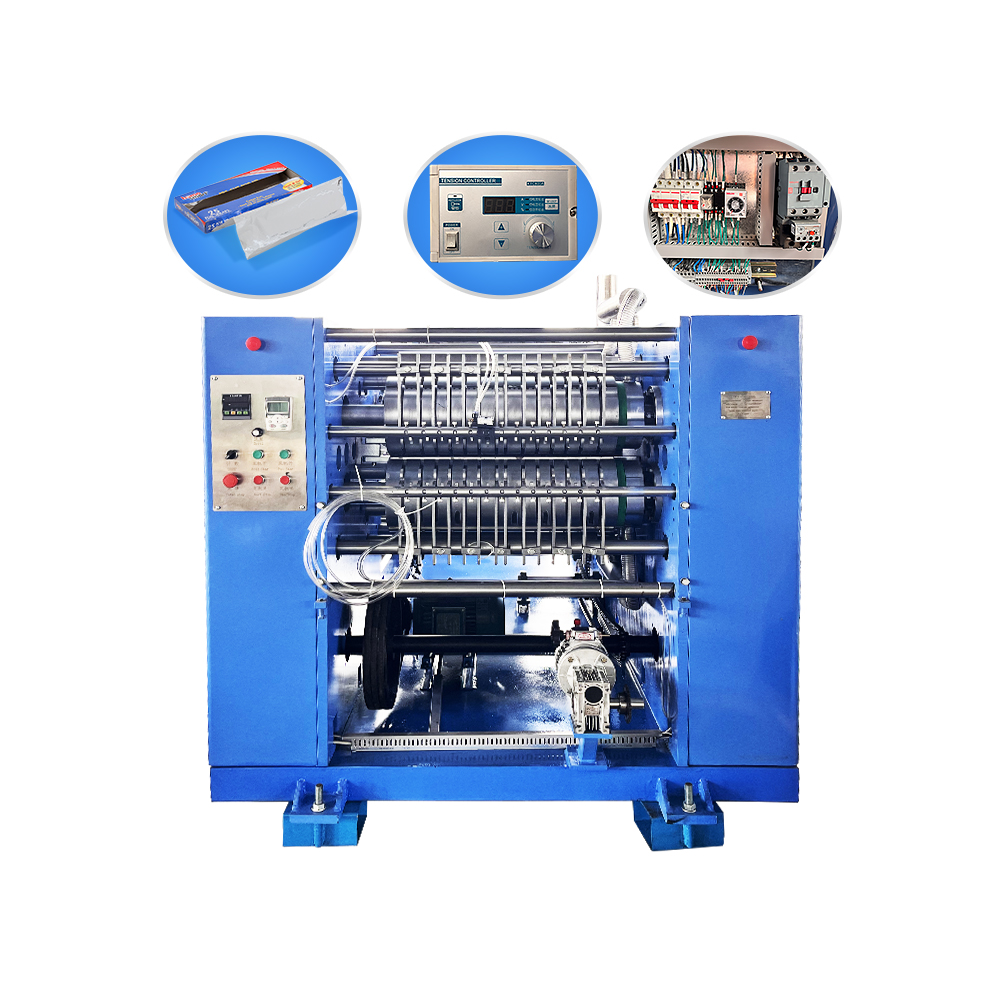

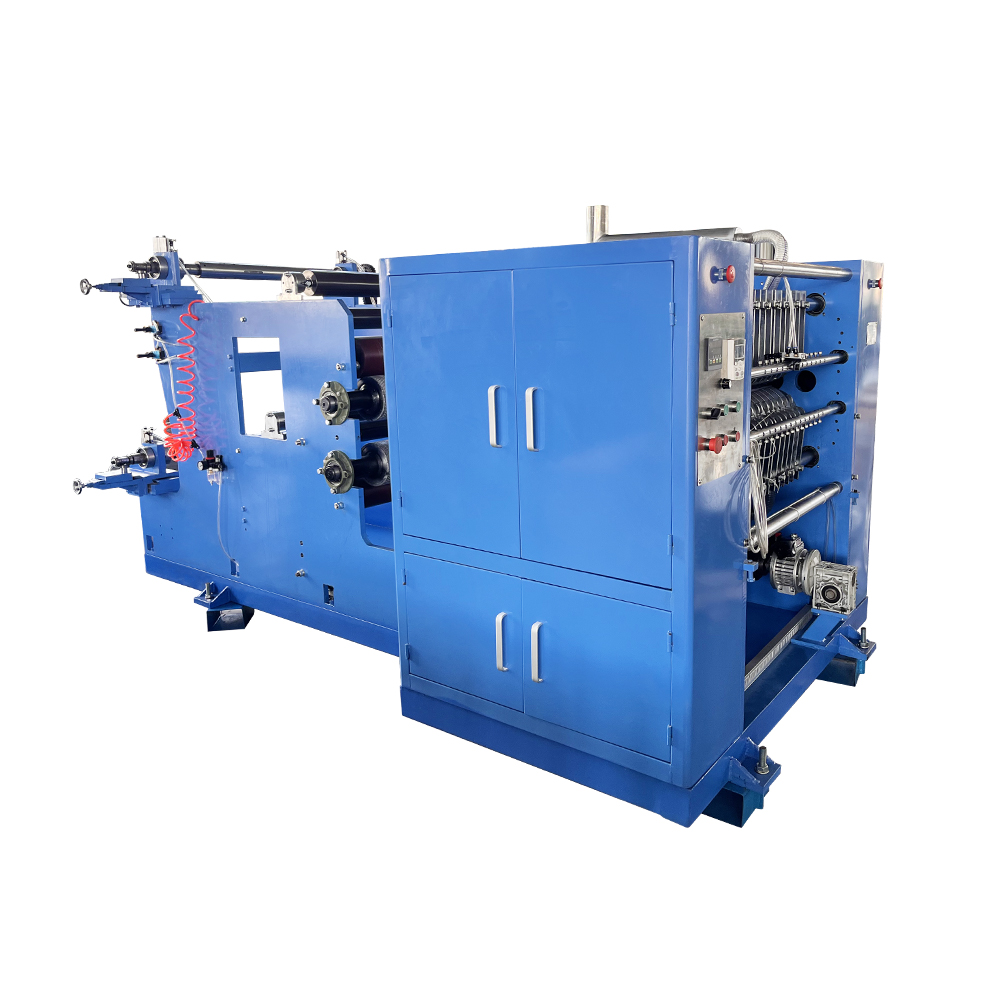

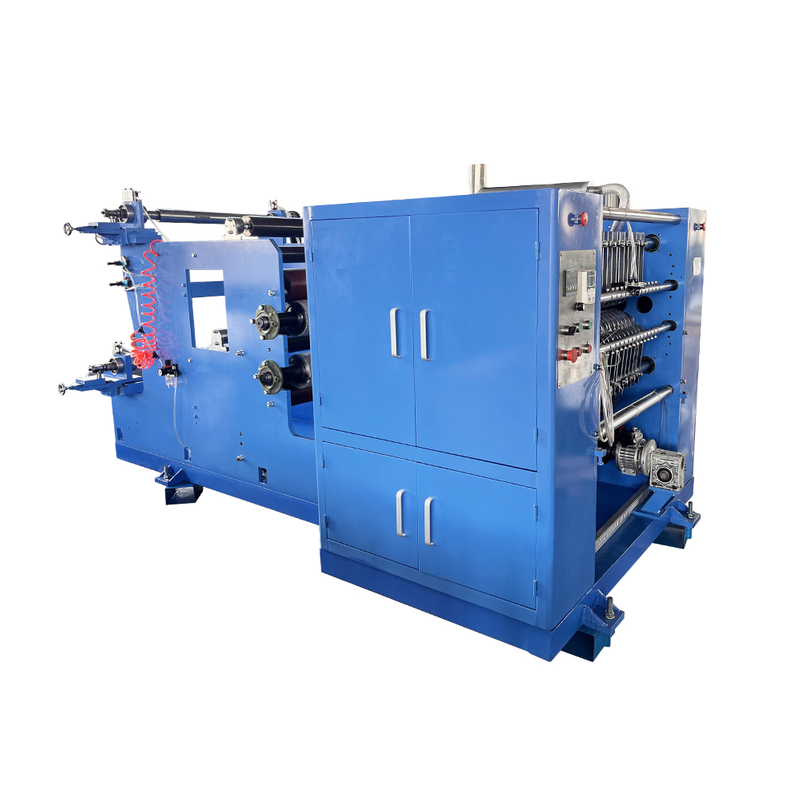

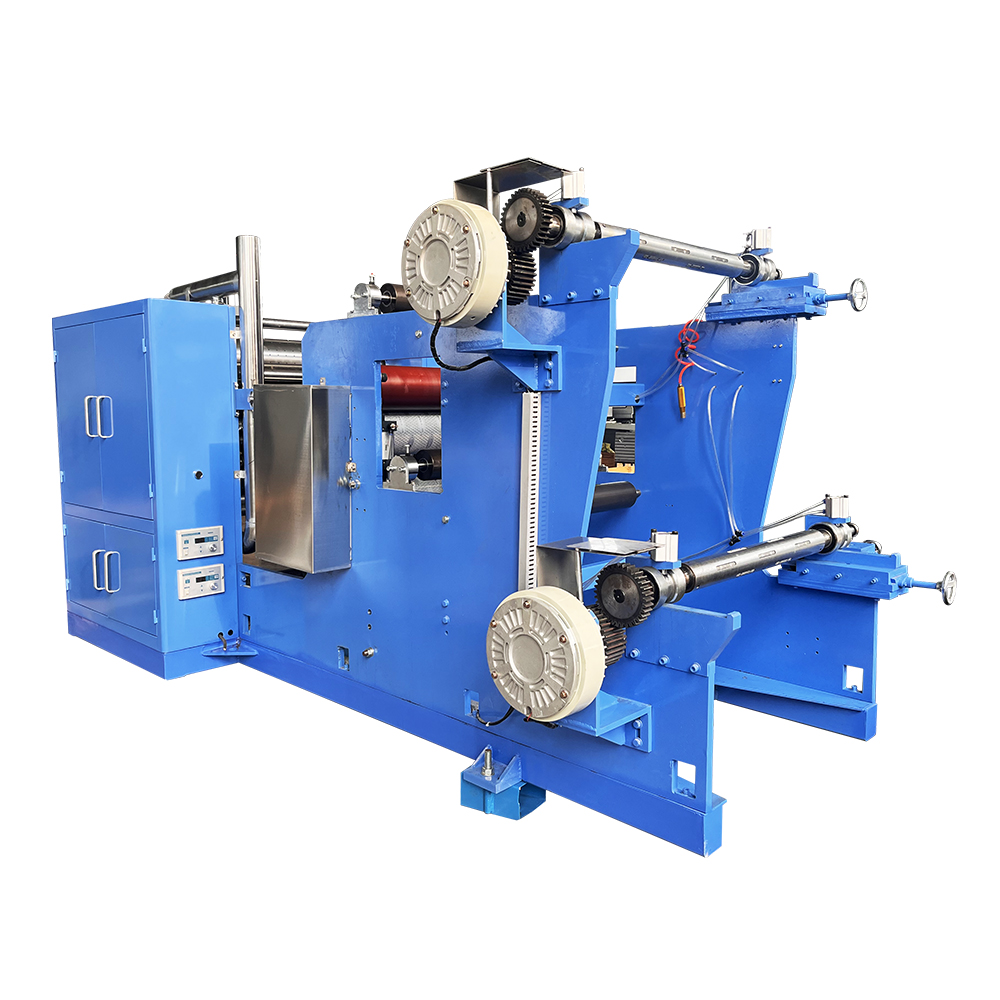

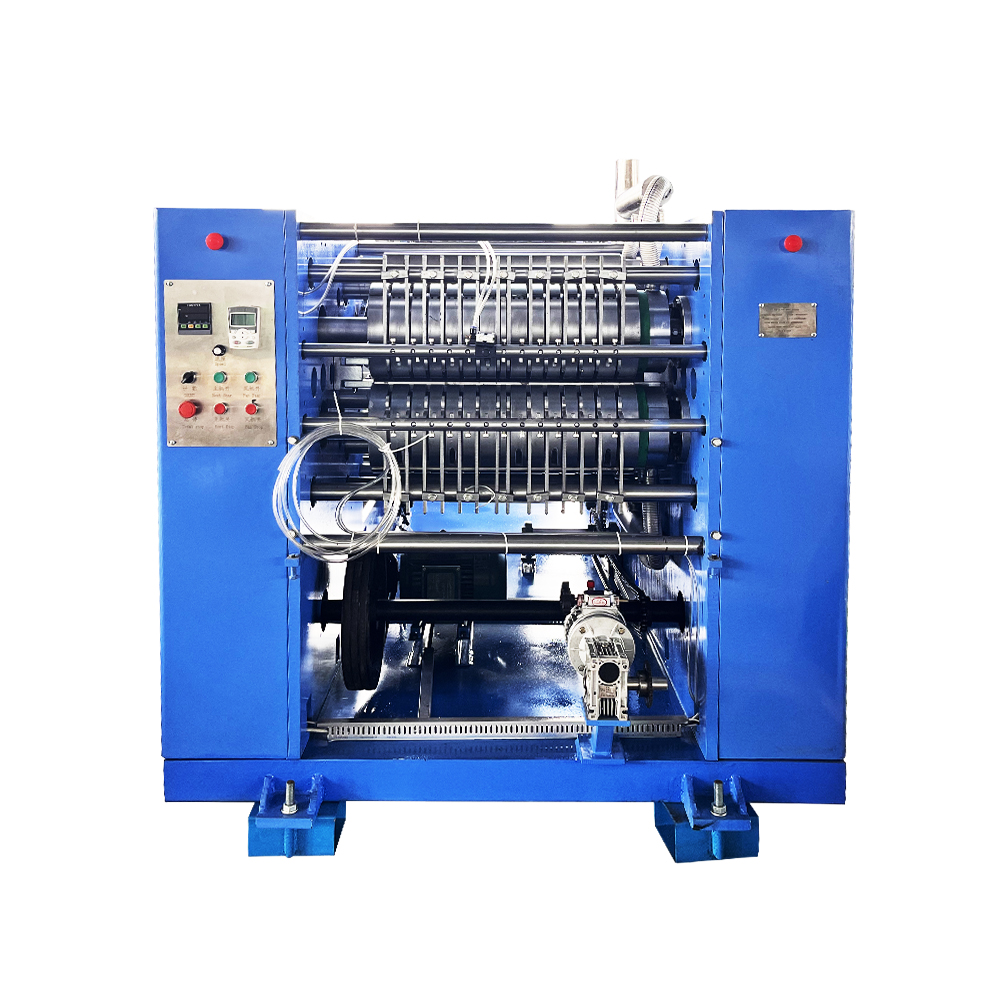

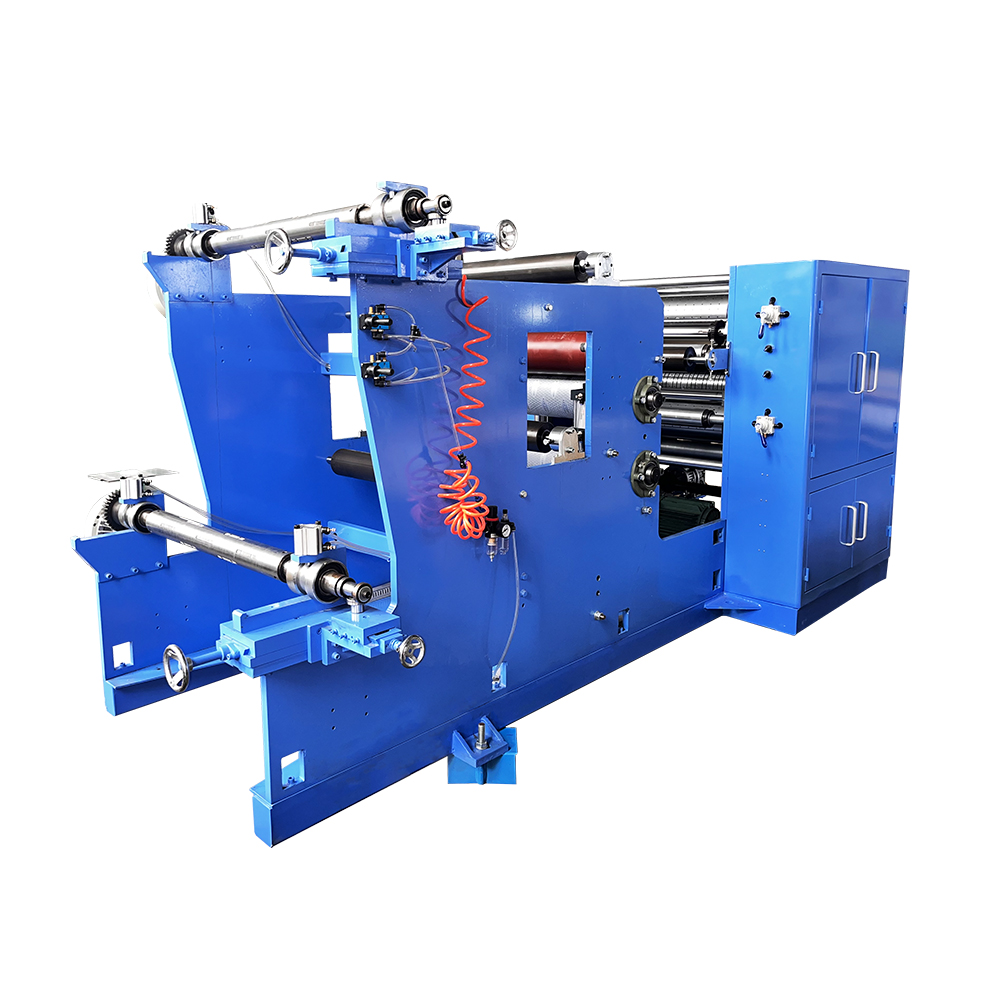

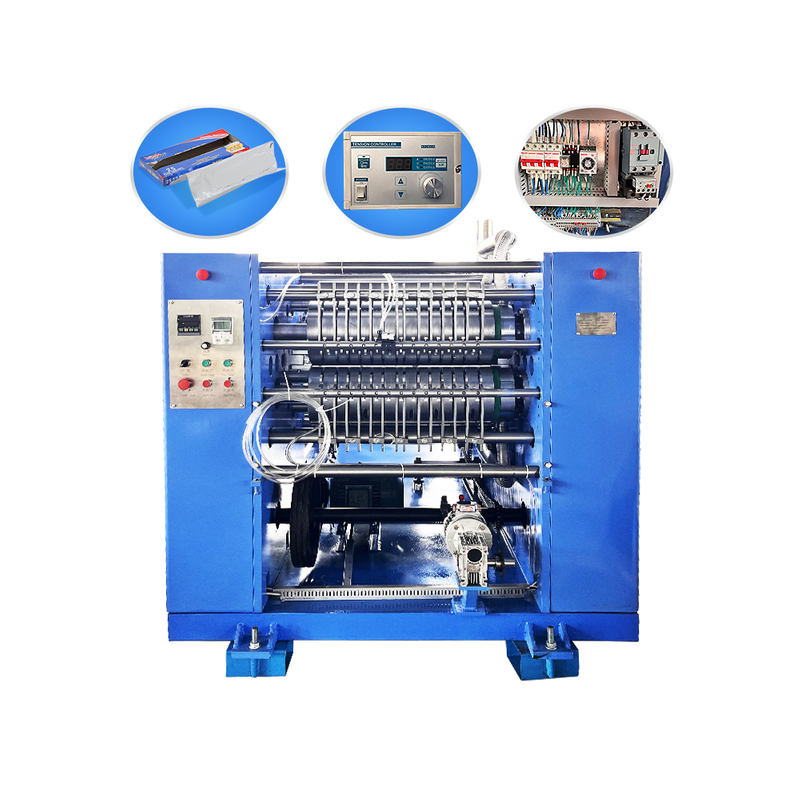

Factory Supplier High Efficiency Aluminum Sheet Pop-up Foil Making Machine

The material on the machine → constant tension adjustment→embossing device → slitting → vacuum adsorption folding (interlocking)→molding products launched

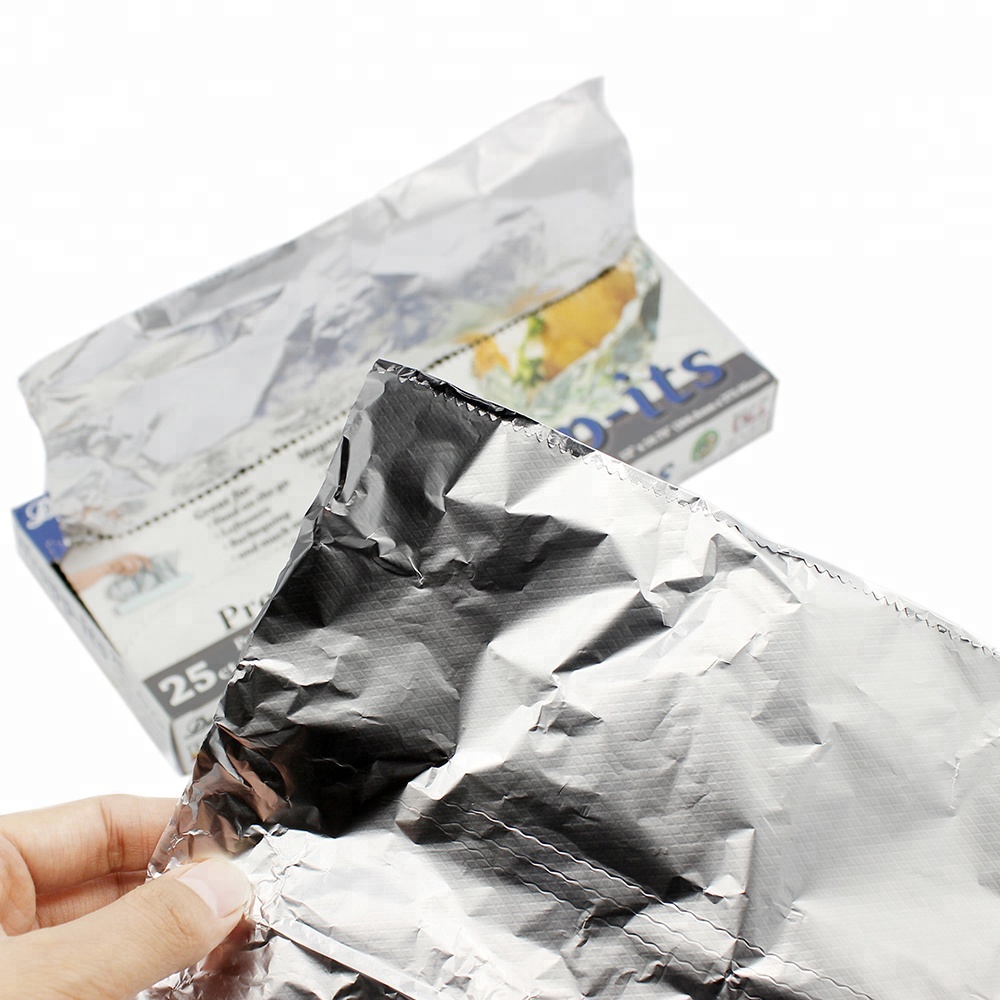

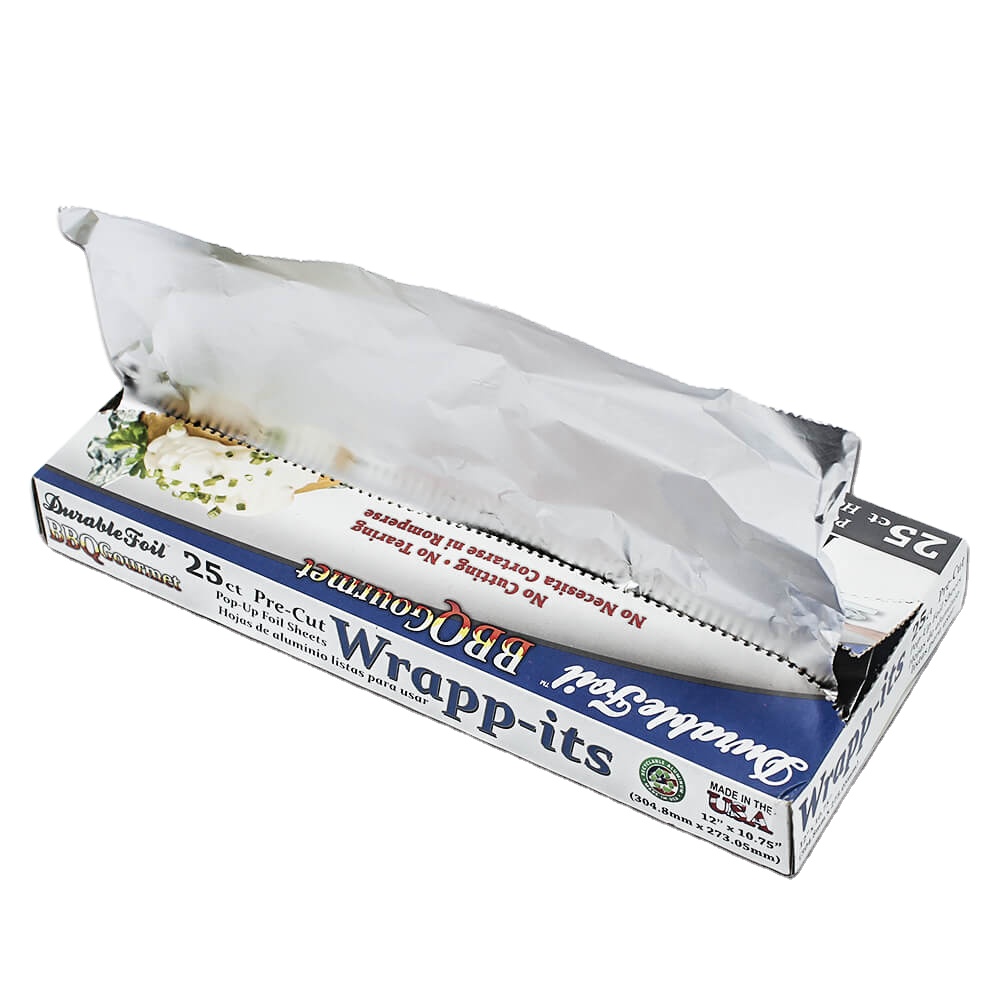

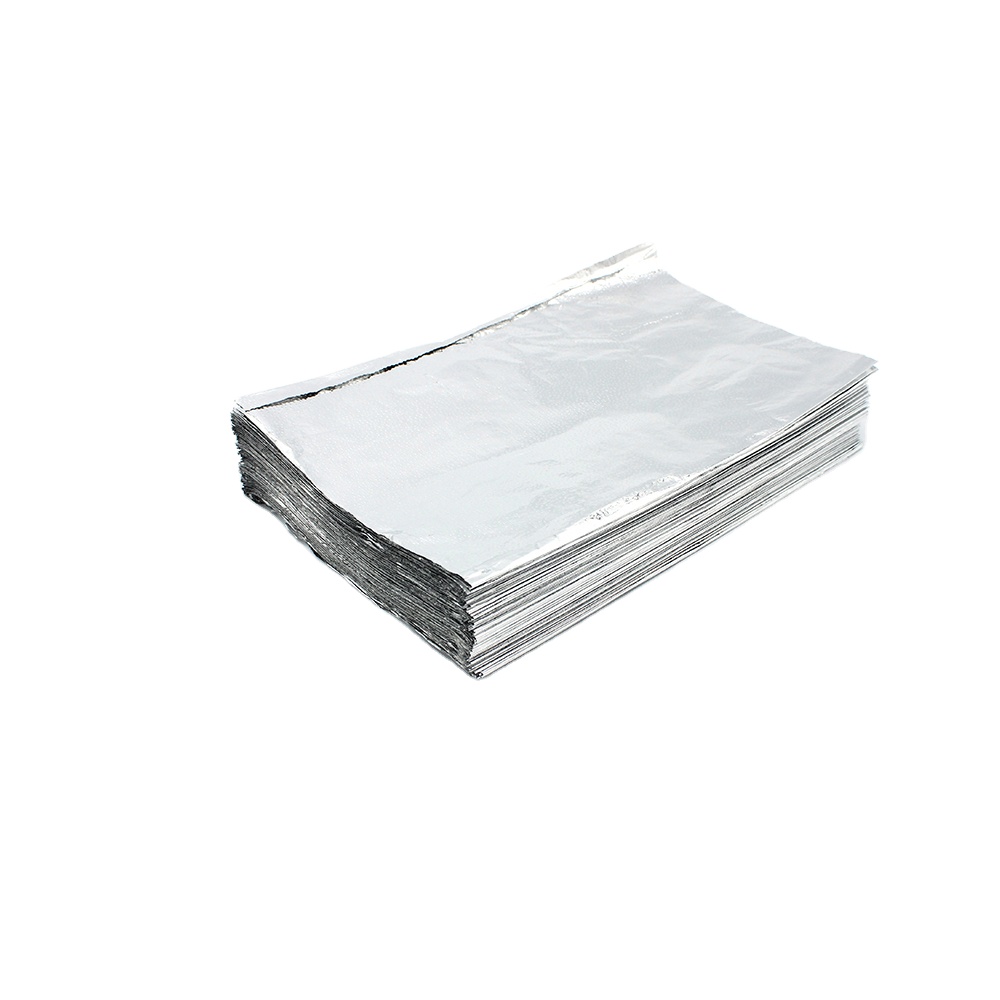

| Finished Products

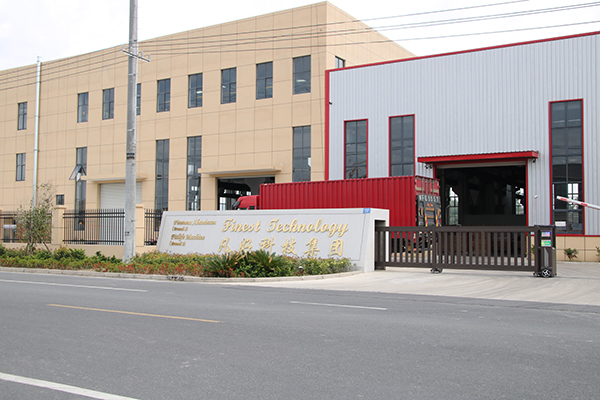

| Company Profile

Zhangjiagang Fitlife Machinery Co.,Ltd is founded in 1992,It has registered capital of 2,800,000 USD,located in world famous tourism city Suzhou,100km away from Shanghai.

The company is dedicated to R&D, production and sales of aluminum foil related products and machines, such as household aluminum foil, hairdressing foil, silicone oil paper, aluminum foil jumbo roll, aluminum foil container, aluminum foil rewinding machines, Automatic box folding gluing machine, cartoning machine and aluminum foil container production line etc.

More than 90% of its products are exported abroad. With the pace of globalization, the company spares no effort in becoming a first-class supplier of such products.

| Technical Parameters

1. Finished product size:length 273 mm x width 9 inches or 12 inches

2.Finished product folding size:length 135mm x width 9inches or 12inches

3.Finished folded shape:V fold crossed, continuous extraction

4. Embossing device: steelonthe polyurethane roller

5.Applicable raw materials:0.01-0.02mm above the tolerance plus or minus 5% thickness single layer aluminum foil

6.Raw material core size: 76 mm(3 inches)

7.Material size: ≤ 600 mm * maximum width of 680 mm

8.Processing capacity: 250 sheets/column points, that is, 500 sheets/minute

9.Slice size:9 inches 2 columns or 12 inches 2 columns or 9,12 inch each 1 column (please confirm)

10. Power required: Roots blower motor: 380V 50Hz 20KW

11. Main motor:380V 50Hz 4KW

12. Constant tension motor: 380V 50Hz 1KW

13.Machine weight: 4000kg

14. Machine size:4.5m*2m*2m

15 .Aircompress :0.6MPA

16. RootBlower Sation(LxWxH): 150mm1000m*2500mm
