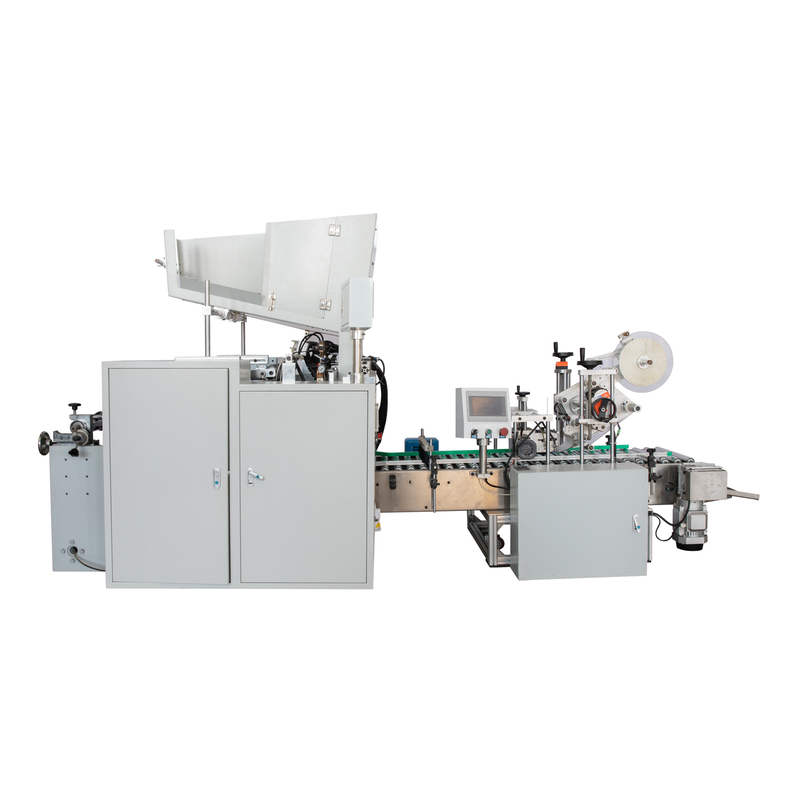

Automatic Aluminum Foil Roll Rewinder Aluminium Foil Rewinding And Rolling Cutting Machine

30pcs/Minute .( 0.011mm x300mm x 5m ) The machine is equipment than can once complete gluing, winding length counting and cutting in the production of foil material.laybel system , It is suitable for processing work of packing materials such as household aluminum foil,baking paper etc. It is mainly used in the sectors of refreshing, grilling and cleaning, etc. It can substitute plastic preservative film. It is the domestic progressive food hygiene cleaning equipment at present
Availability:
Quantity:
  • HAFA-890H

  • FITLIFE

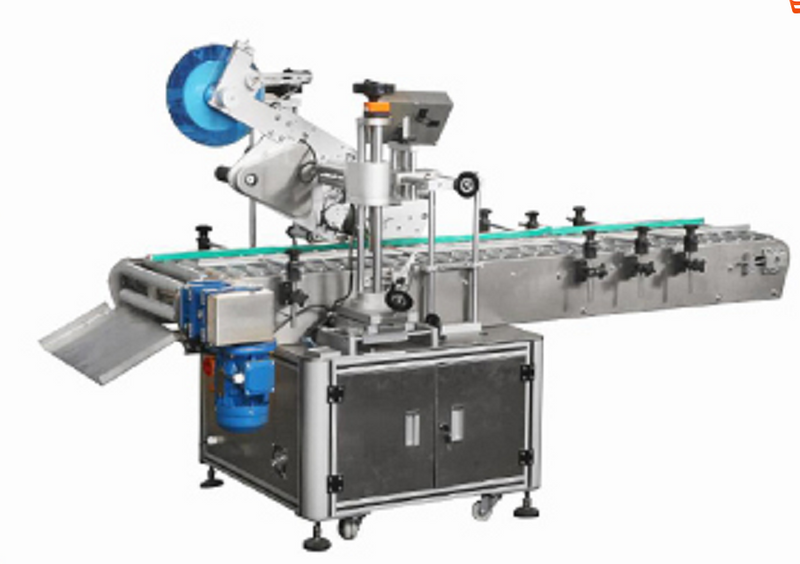

HAFA890H  Automatic Aluminum Foil Roll Rewinder with laybel system

Performance Features:

1. The complete machine adopts PLC control and safety & reliability.

2. In service, material receiving, gluing, winding and cutting,etc. are all automation control.

3. Without glue, winding and decrement of production cost

4. The winding adopts automatic gear shifting control with higher effect.

5. Squierrelcage operation adopts servo control, exact positioning without accumulated error.

6. Rolling small shaft delivery mechanism and exact safety.

7. Wallboard structure and smooth stabilization.

8. Constant tension unwinding and winding stabilization.

89089

Technical Parameters:

o Thickness of raw material:0.008mm-0.04mm

o Raw material width:100-500mm

o Maximum unwinding diameter:Φ600mm

o Inner diameter of raw material roll core: Φ76mm or Φ152mm

o Inner diameter of finished product roll core:Φ25mm,Φ30mm and Φ38mm

o Cutting length of roll:3m-300m

o Production efficiency:Calculation with 5m of roll cutting length, 5-30 rolls/min

o Magnetic powder brake: 25N.Mo Magnetic powder clutch: 25N.M

o Complete machine power:6.5KW

o Overall dimension:4,000mm×1,400mm×1,820mm

o Complete machine weight:About 1,900kg



HAFA890H Machine Packing List

1. Aluminum Foil Rewinding And Cutting Machine: 1 Unit

2. (Accessories): (Inner Hexagon Spanner):1 Piece

(Screw Wrench):1 Piece

(Chuck Wrench): 1 Piece

  (Blade Adapter): 1 Piece

(Squirrel-cage Top Tube Plate): 1 Set

(Inflatable Mouth): 1 Piece

(Gasket Ring): (30 pieces: 10 pieces per item)

(Top-head): φ30; φ38mm :1 set respectively

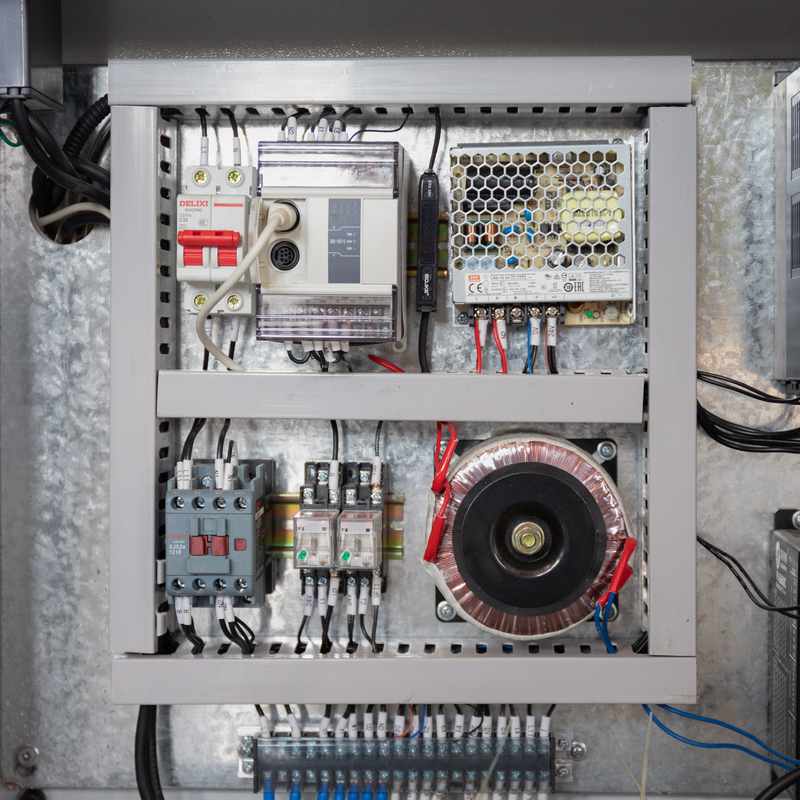

IMG_3493IMG_3467IMG_3487IMG_3462
