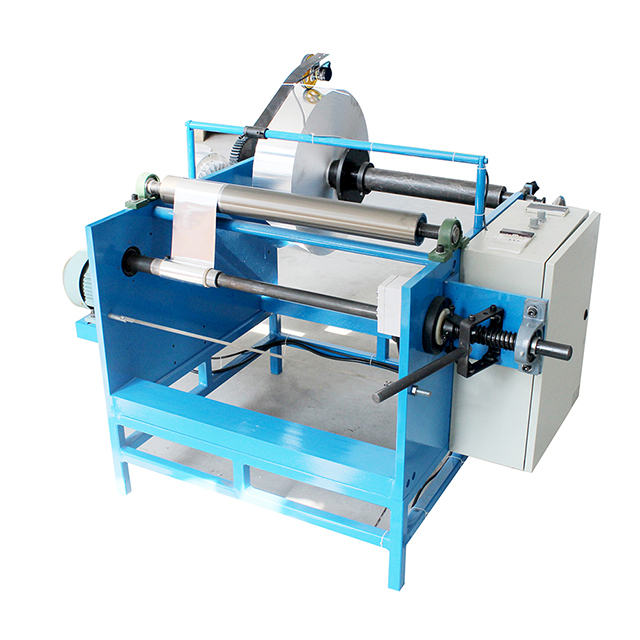

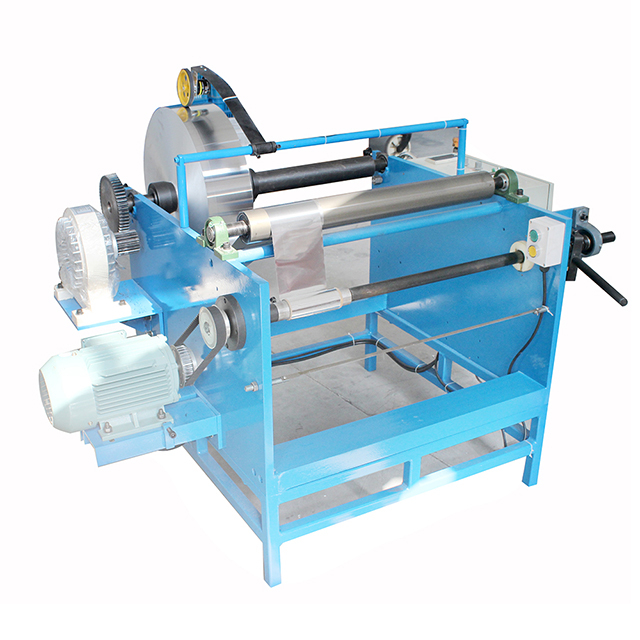

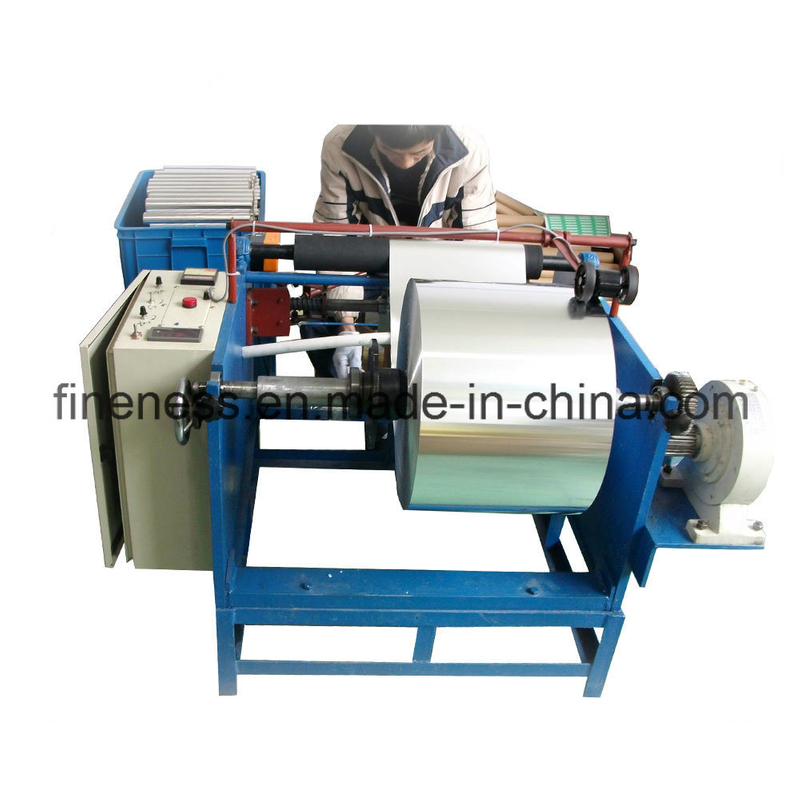

Manual Aluminum Foll/Baking paper Rewinder Machine (One Shaft)

Manual rewind machine can rewind aluminum foil /Baking paper /Cling film,it can just use 220V Voltage,No need air compressor ,so you just use home Voltage can use this machine to make your product , Usually One China girl can make rewind 5m at 5000pcs . it depend on your worker smart enough .

Size:
Quantity:
  • HAFA-350
  • FITLIFE
  • 84798110

II.Main technical parameter

1(Thickness of Raw Material) 0.009—0.025mm

2(Width of Raw Material) 100—500mm (800mm OEM)

3(Maximun Unwinding Diameter) φ600mm

4(Inner Diameter of Raw Material Roll Core) φ75mm

5(Inner Diameter of Finished Product Roll Core):φ25mmφ35mmφ38 mm

6(Cutting Length of Roll) 1200m

7(Production Efficiency) 2.5m/second

8.(Decoil Centering Stroke) +/-20mm

9.Air Pressure)No need

10.(Size):1350*840*960mm

11.(voltage): 220V/1.5KW


350IMG_3829
